MURRAY LOUBSER SIGNATURE - 15mm / 25mm

Arc Fork

Black

C.P

colors:

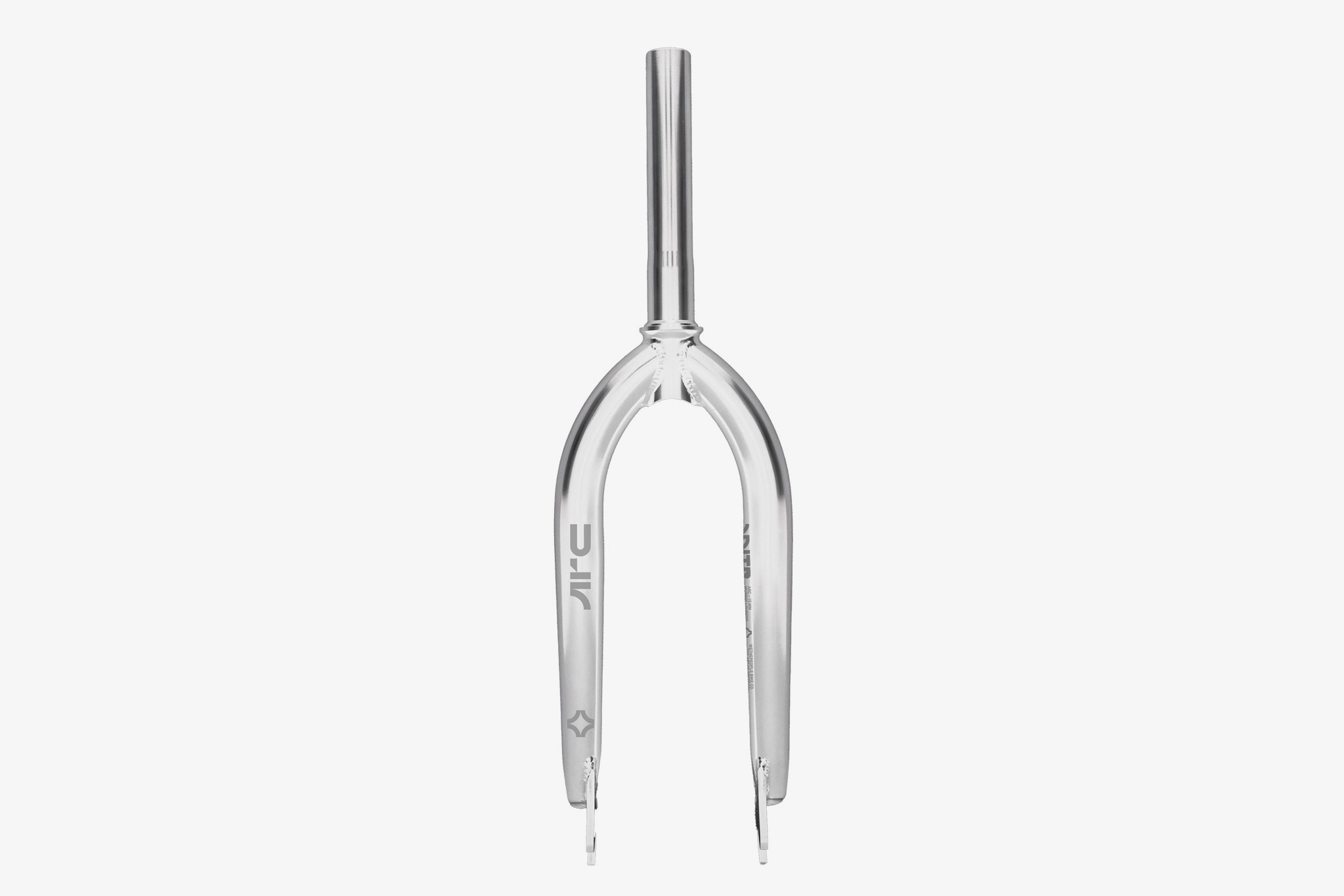

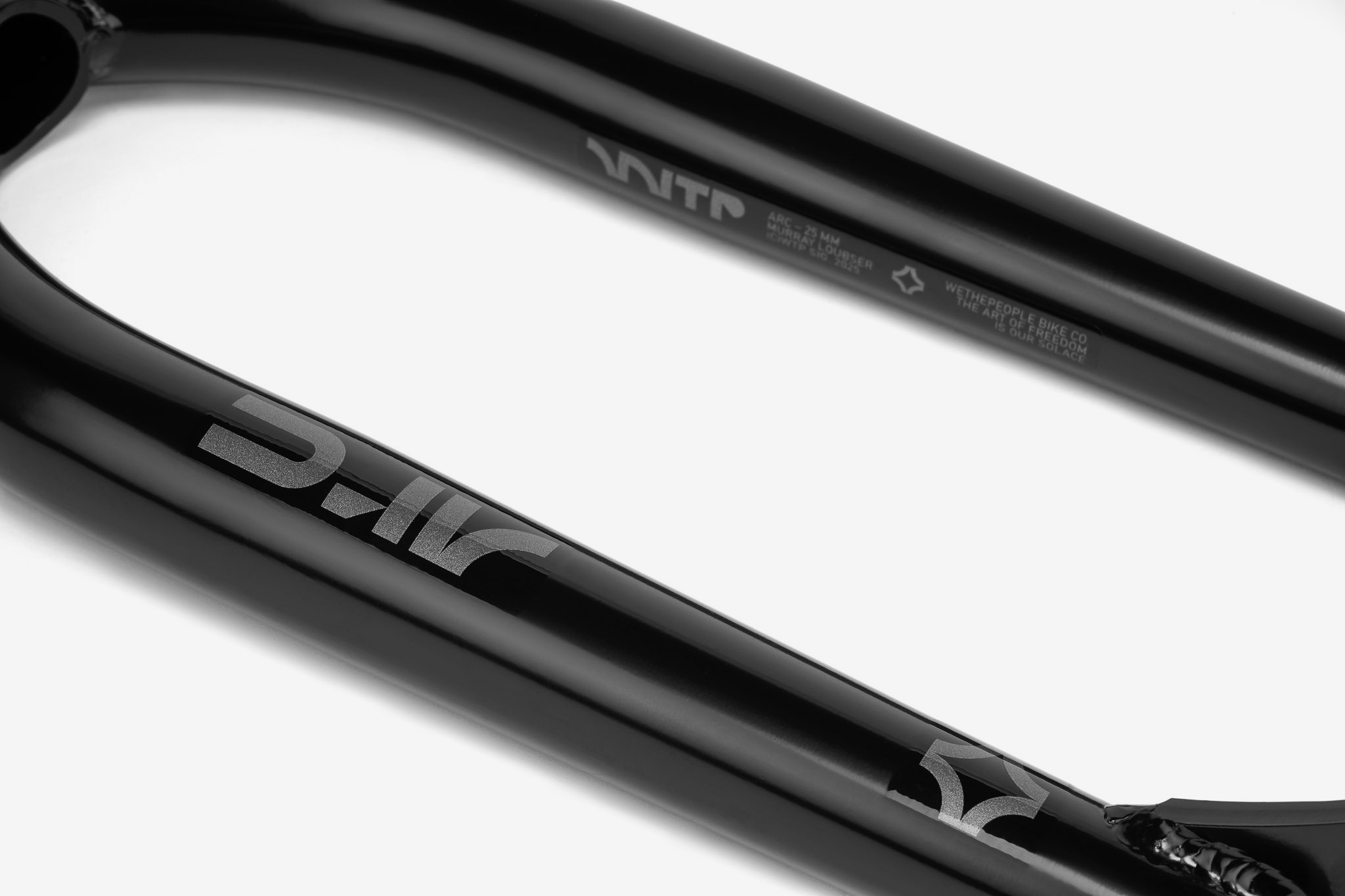

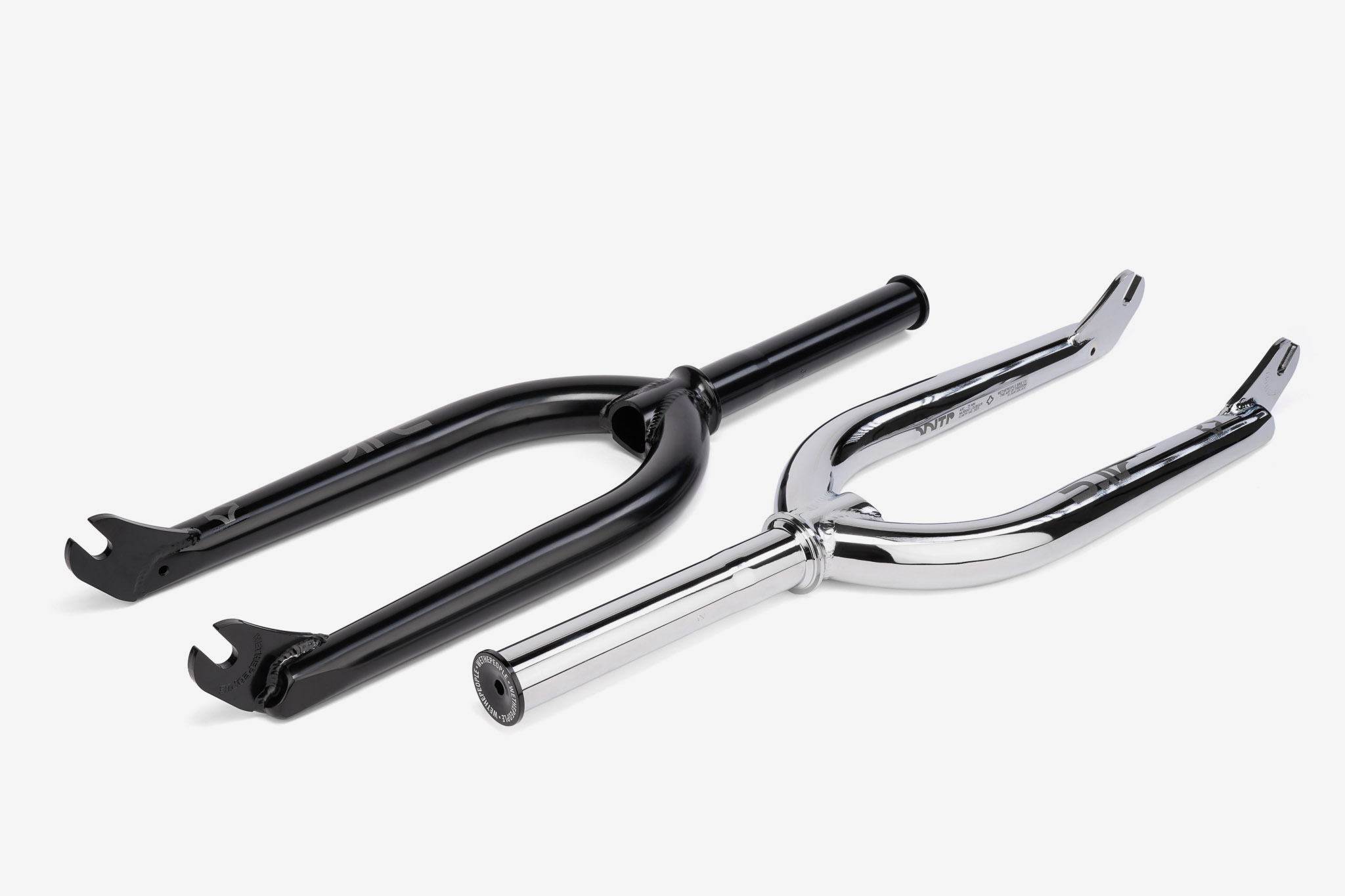

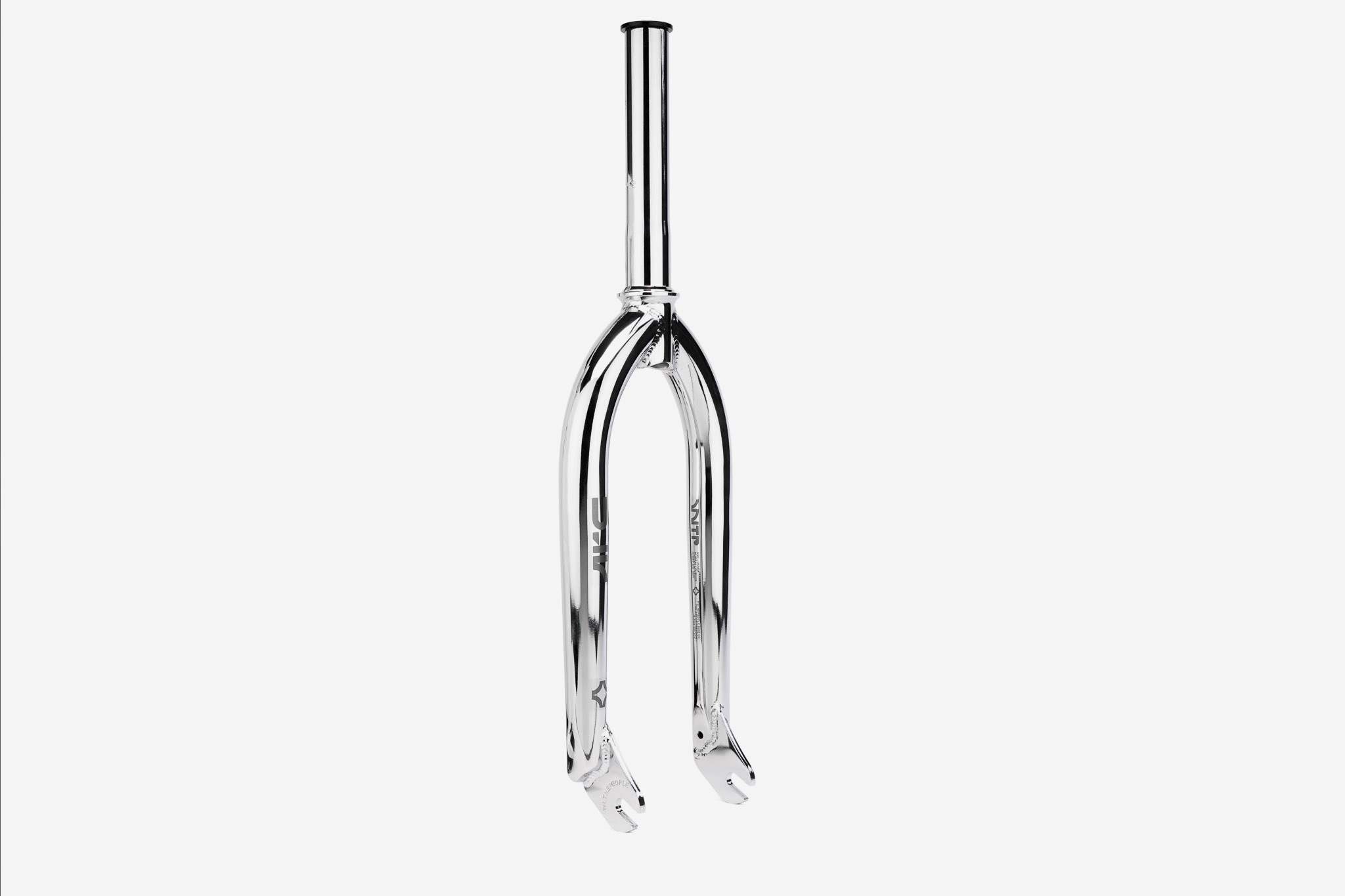

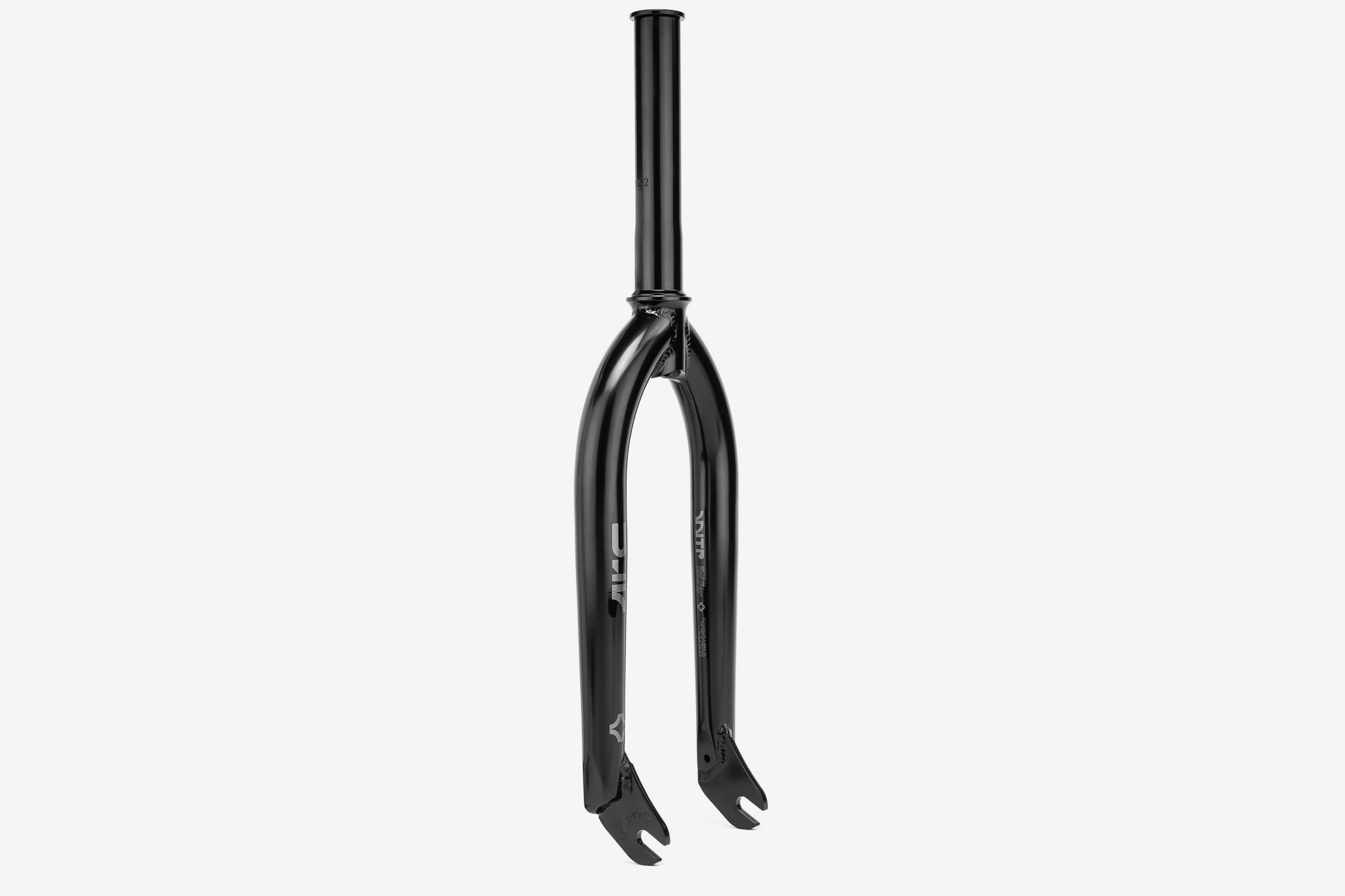

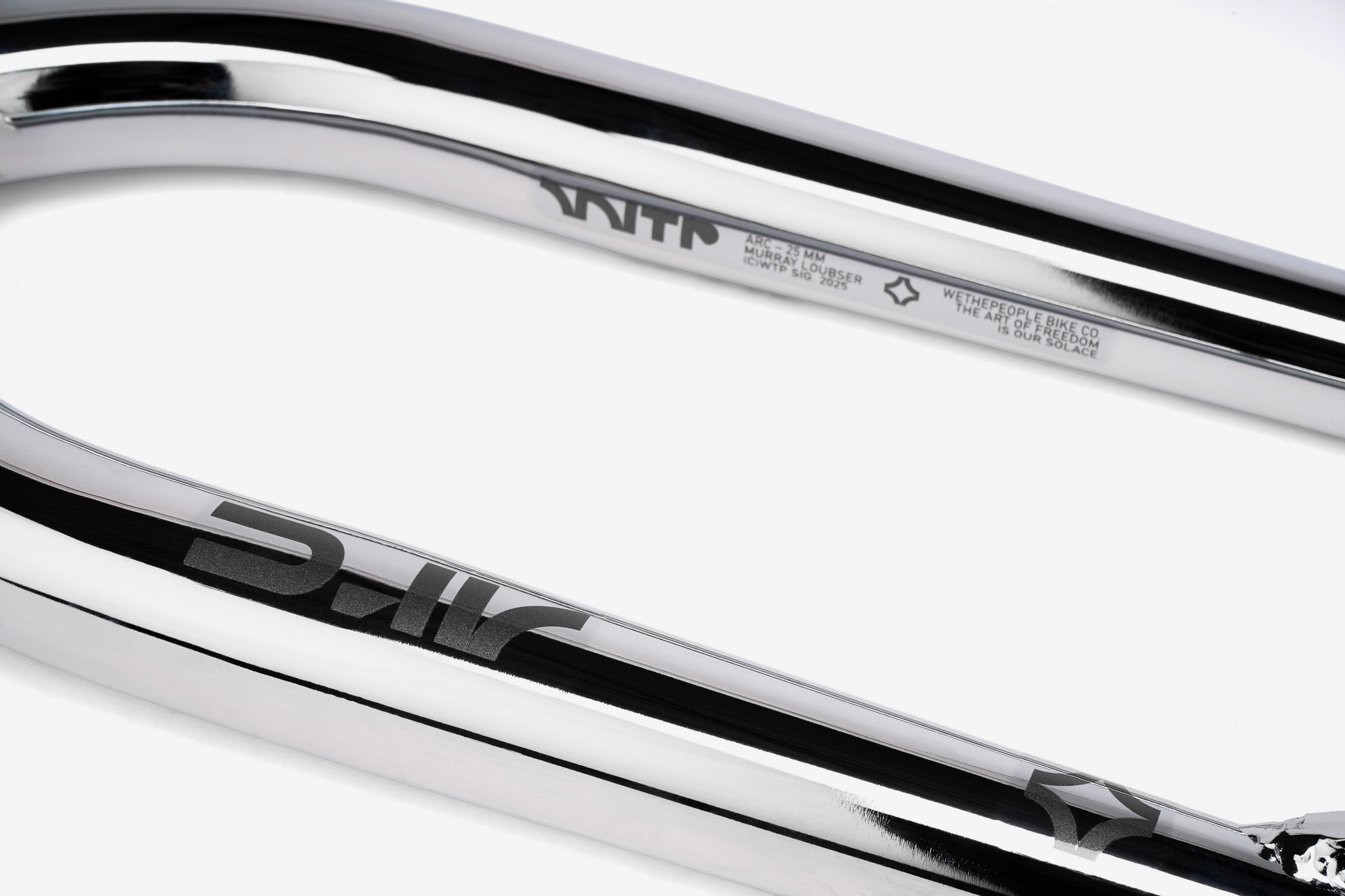

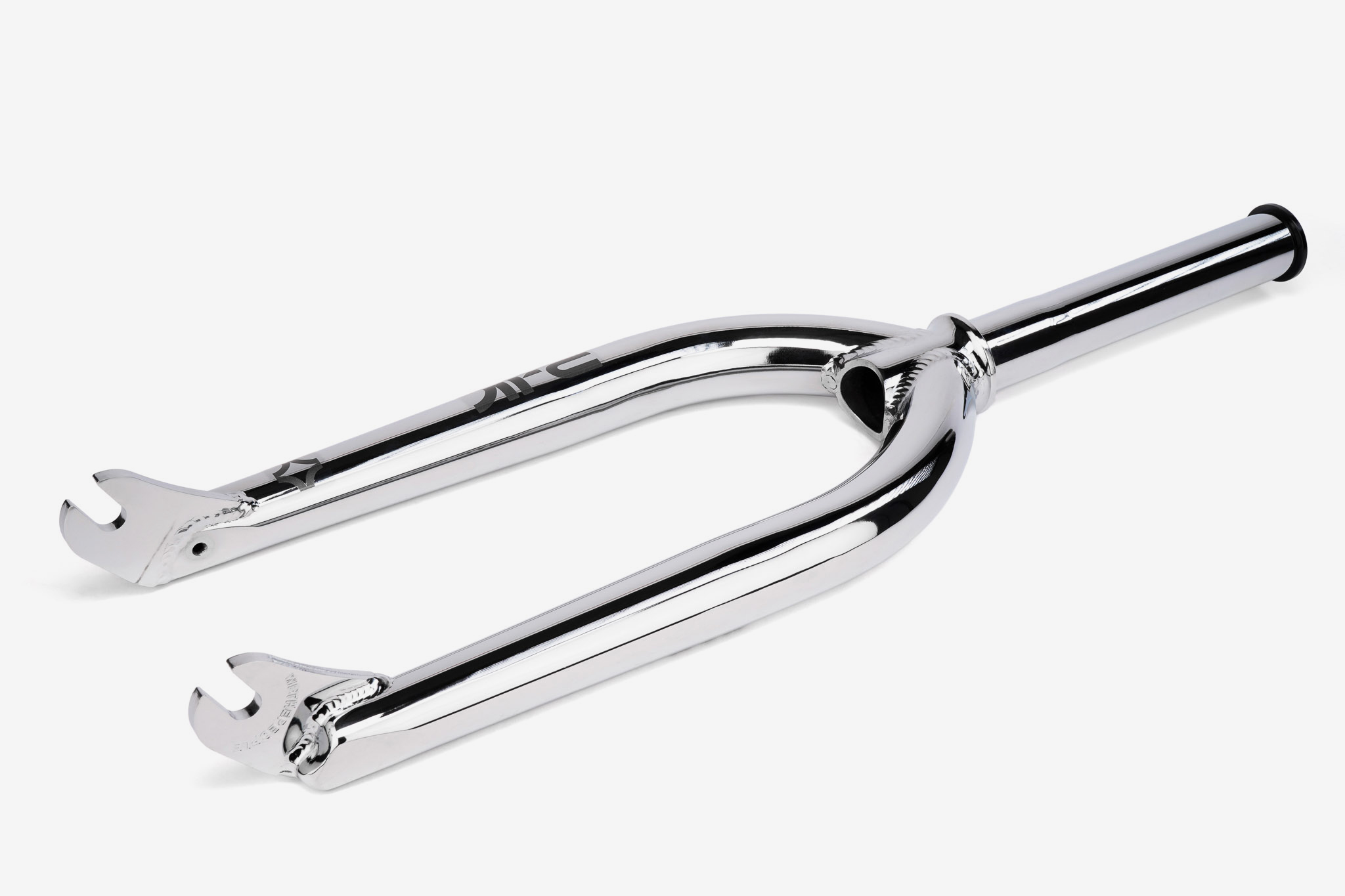

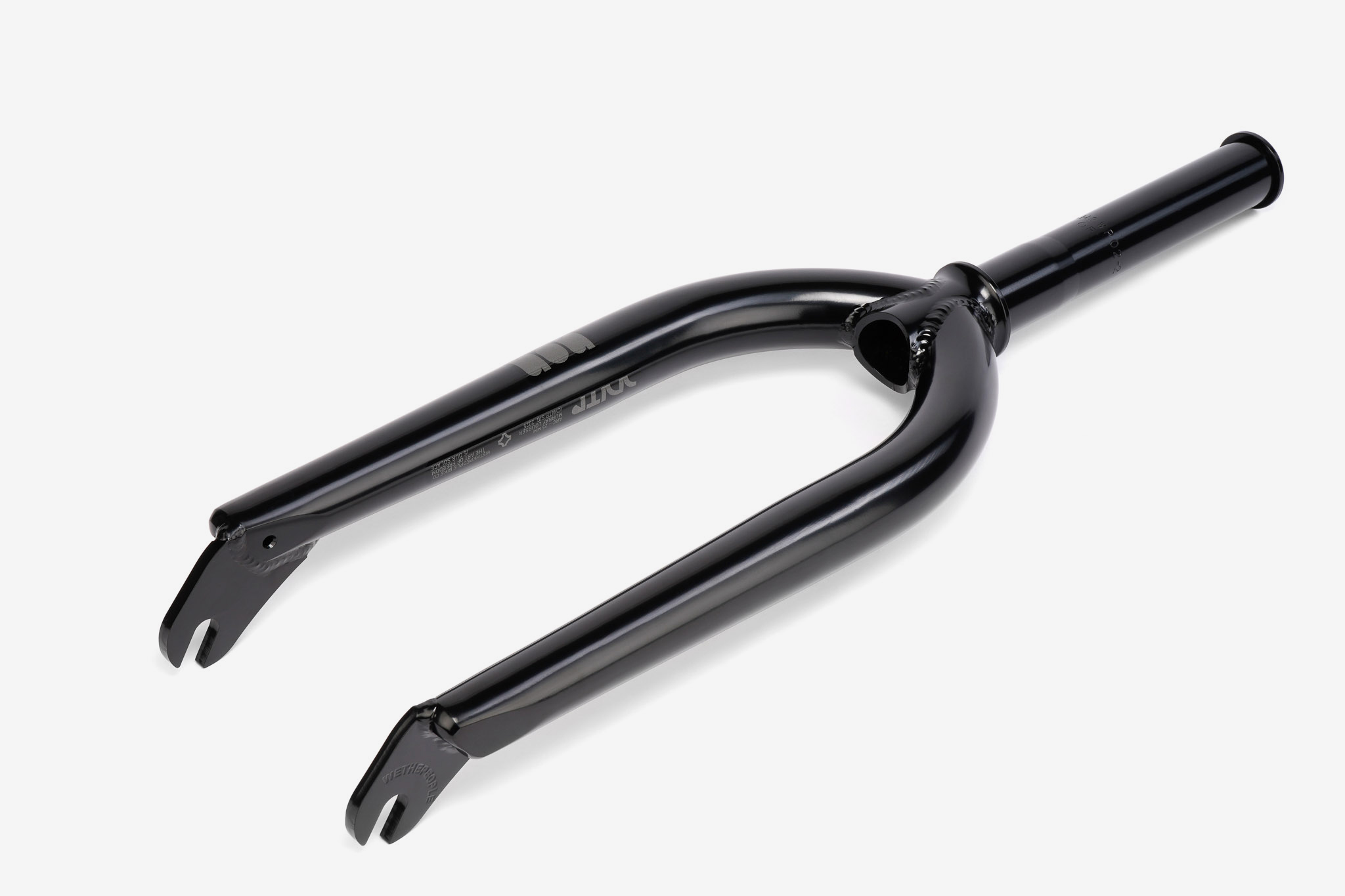

The Wethepeople ARC Fork captures the essence of Murray's creative riding and his relentless pursuit of perfection. Made to complement the ARC Frame, this fork features both a steep 25mm and an even steeper 15mm offset version, providing the perfect balance of stability and agility. With a one-piece CNC-machined steerer tube that flows smoothly into the ARC frame head tube, whether you’re nose-diving into a grind or carving tight lines, this fork delivers unmatched control and maneuverability. Fully backed by our LIFETIME GUARANTEE, the ARC Fork is a future Wethepeople classic.

Arc Fork

No items found.

SPECIFICATIONS

MATERIAL:

full liquid post heat-treatment on 4130 “M2“ crmo, hydroformed fork legs

SIZE:

1 1/8"

WEIGHT:

25mm: fork: 1012g (35.69oz : 2.23lbs) top bolt: 28g (0.98oz : 0.06lbs) 15mm: fork: 993g (35.03oz : 2.19lbs) top bolt: 28g (0.98oz : 0.06lbs)

COLORS:

Black

C.P

MATERIAL:

full liquid post heat-treatment on 4130 “M2“ crmo, hydroformed fork legs

TOP BOLT:

6061-T6 alloy top bolt, M24 thread

STEERER LENGTH:

170mm

OFFSET:

15mm, 25mm

DROPOUTS:

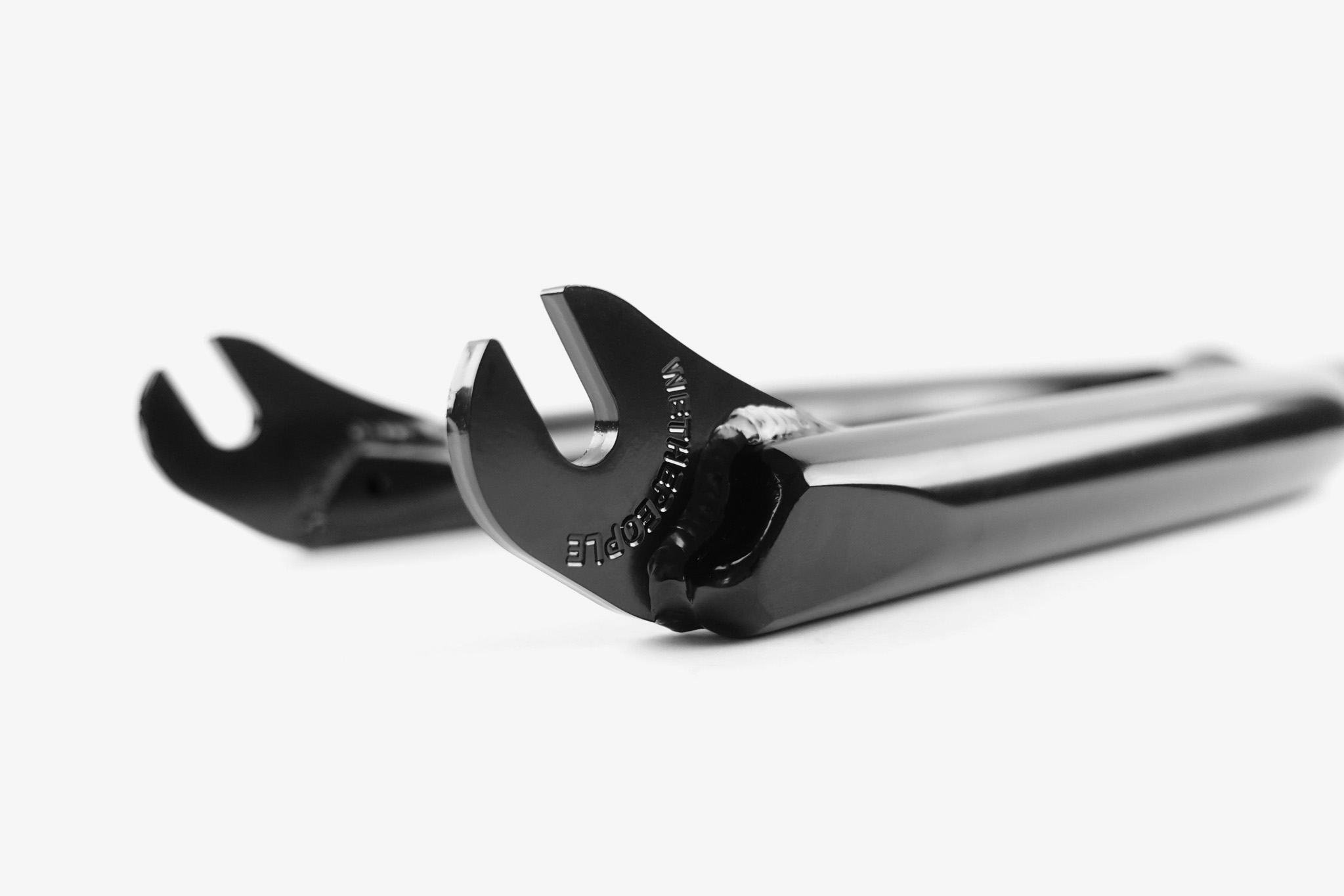

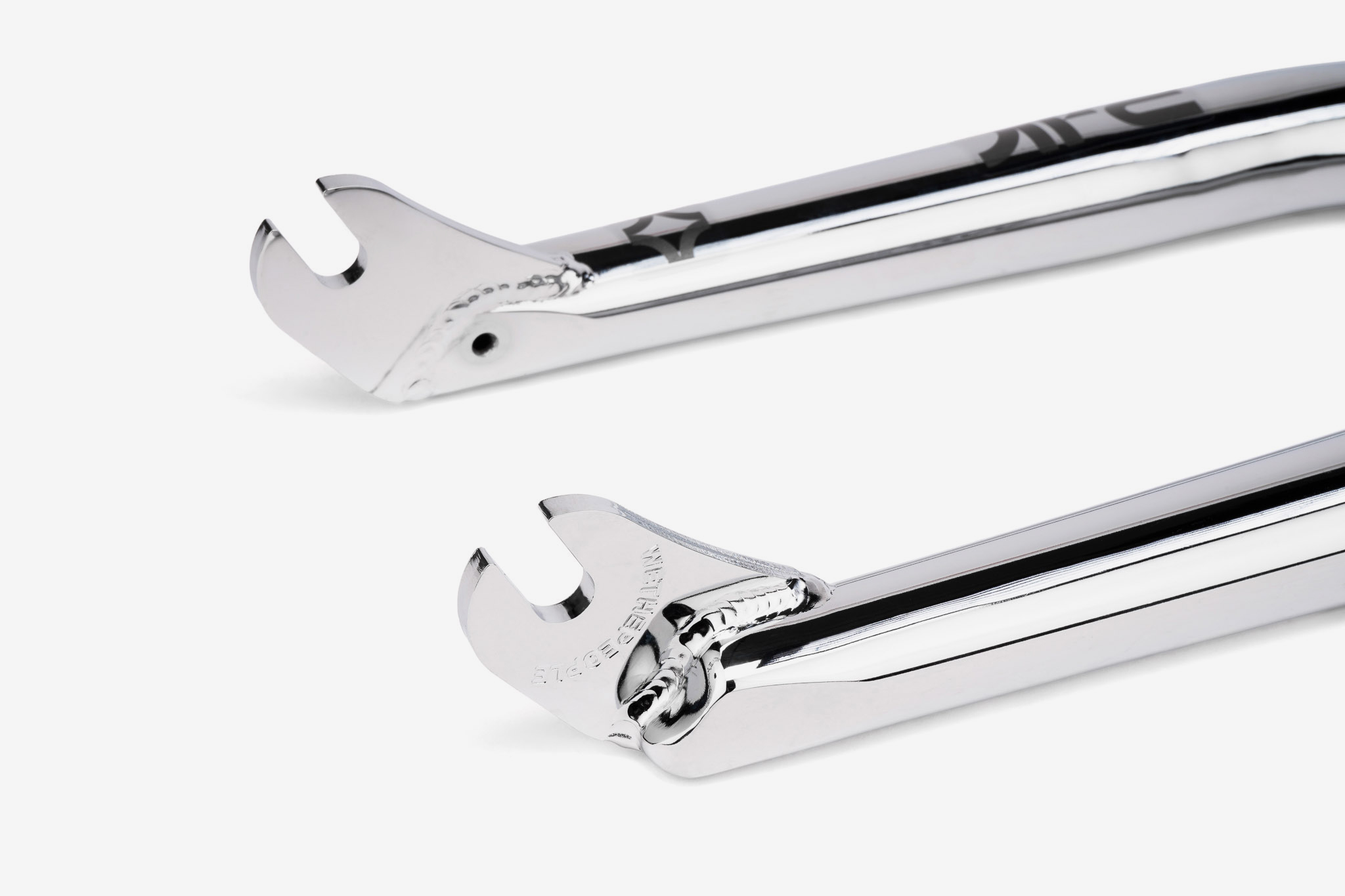

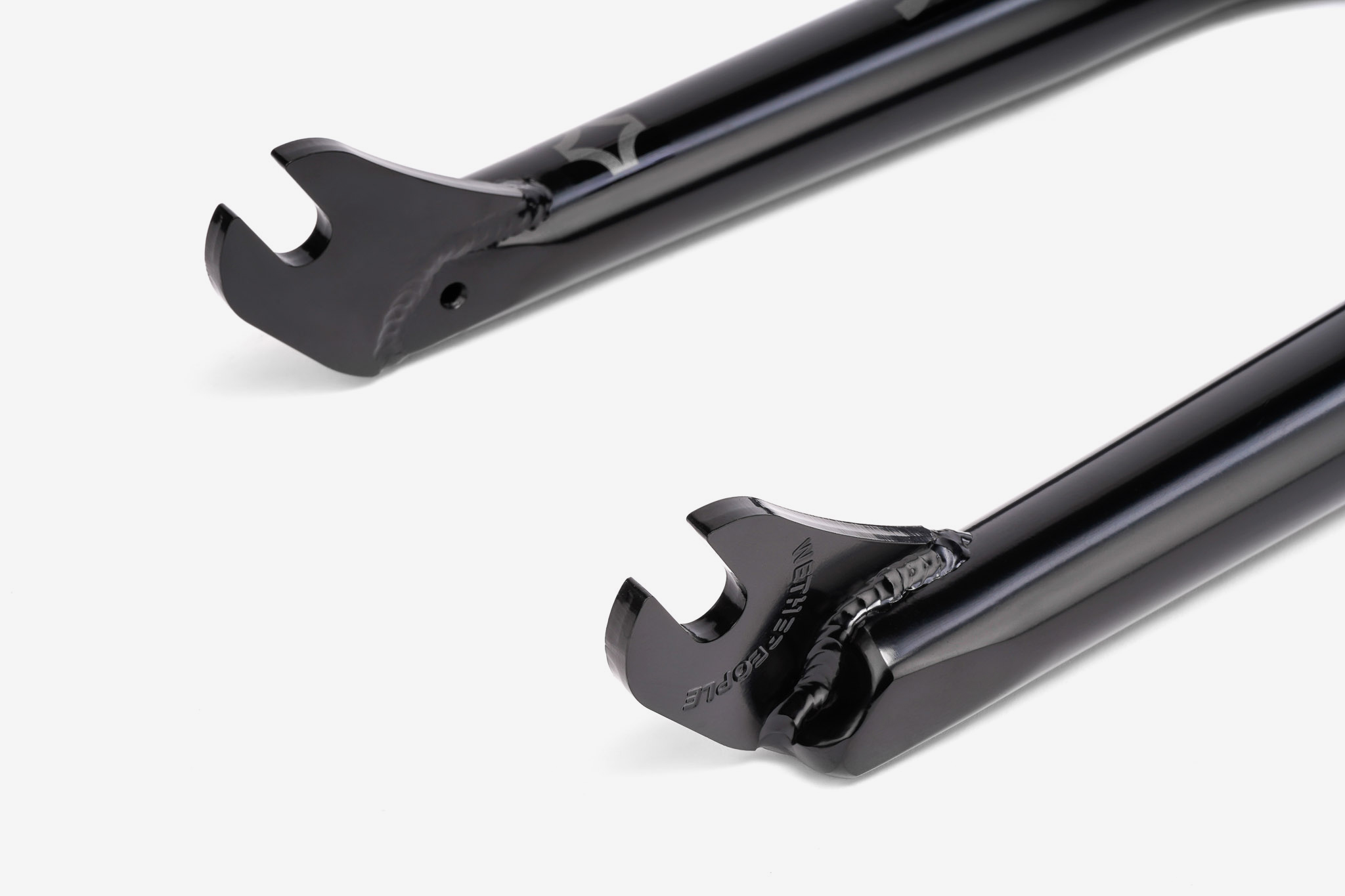

5mm heat treated crmo, laser cut and cnc machined cut-outs, for 3/8''(10mm) axle

SPECIAL FEATURES:

• Murray Loubser signature fork • shorter 15mm and 25mm offsets • 1pc hydroformed fork leg for super strong, clean look • flush fit with ARC frame head tube • integrated crown race designed to work with integrated headsets with a 45° bearing • tapered triple butted fork blades • slotted smaller dropouts for incresased wel area and no snagging/ catching on grinds • 2.5"" tire clearance • laboratory tested and developed • includes LIFETIME GUARANTEE

WEIGHT:

25mm: fork: 1012g (35.69oz : 2.23lbs) top bolt: 28g (0.98oz : 0.06lbs) 15mm: fork: 993g (35.03oz : 2.19lbs) top bolt: 28g (0.98oz : 0.06lbs)

COLORS:

Black

C.P
