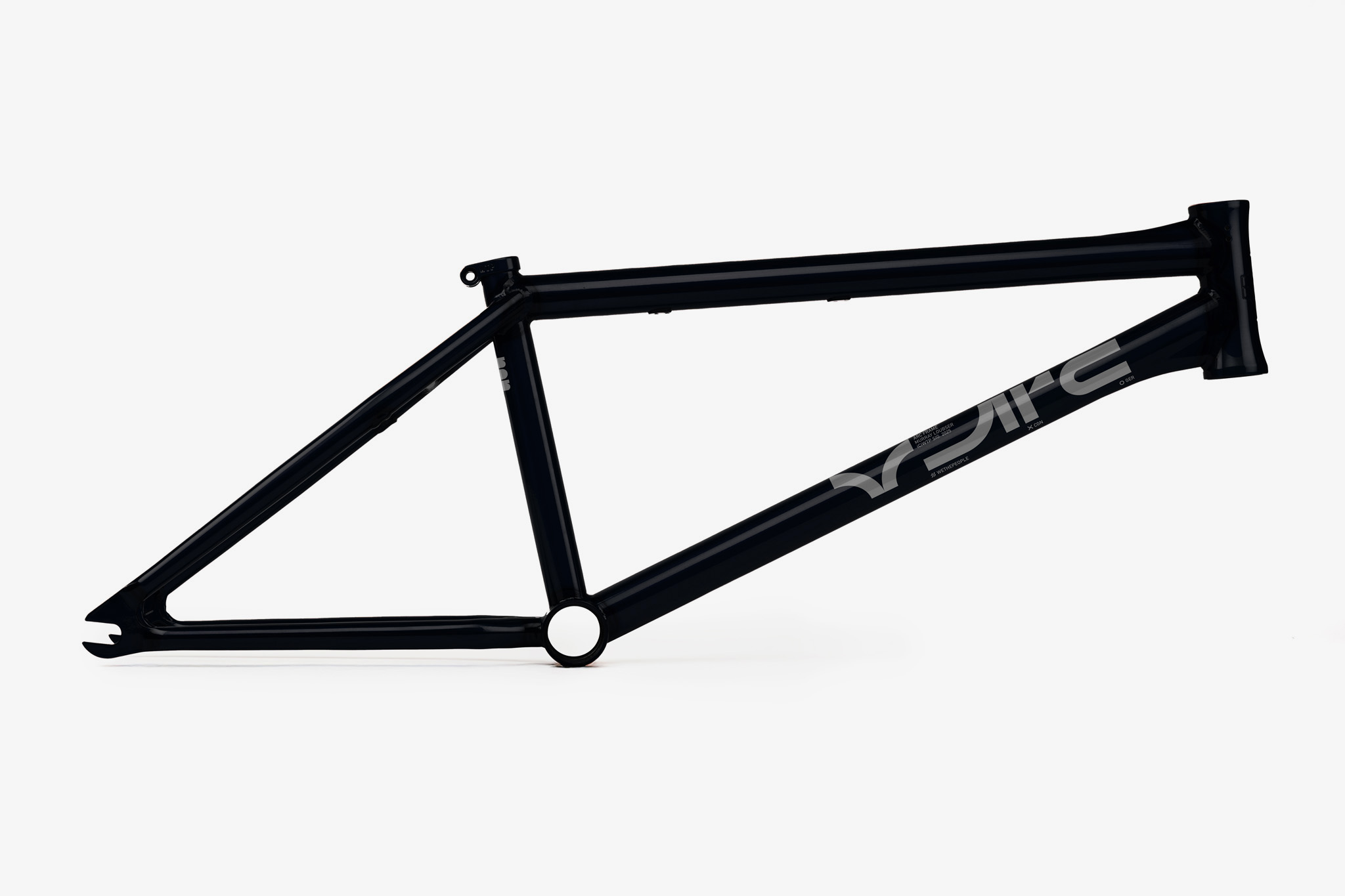

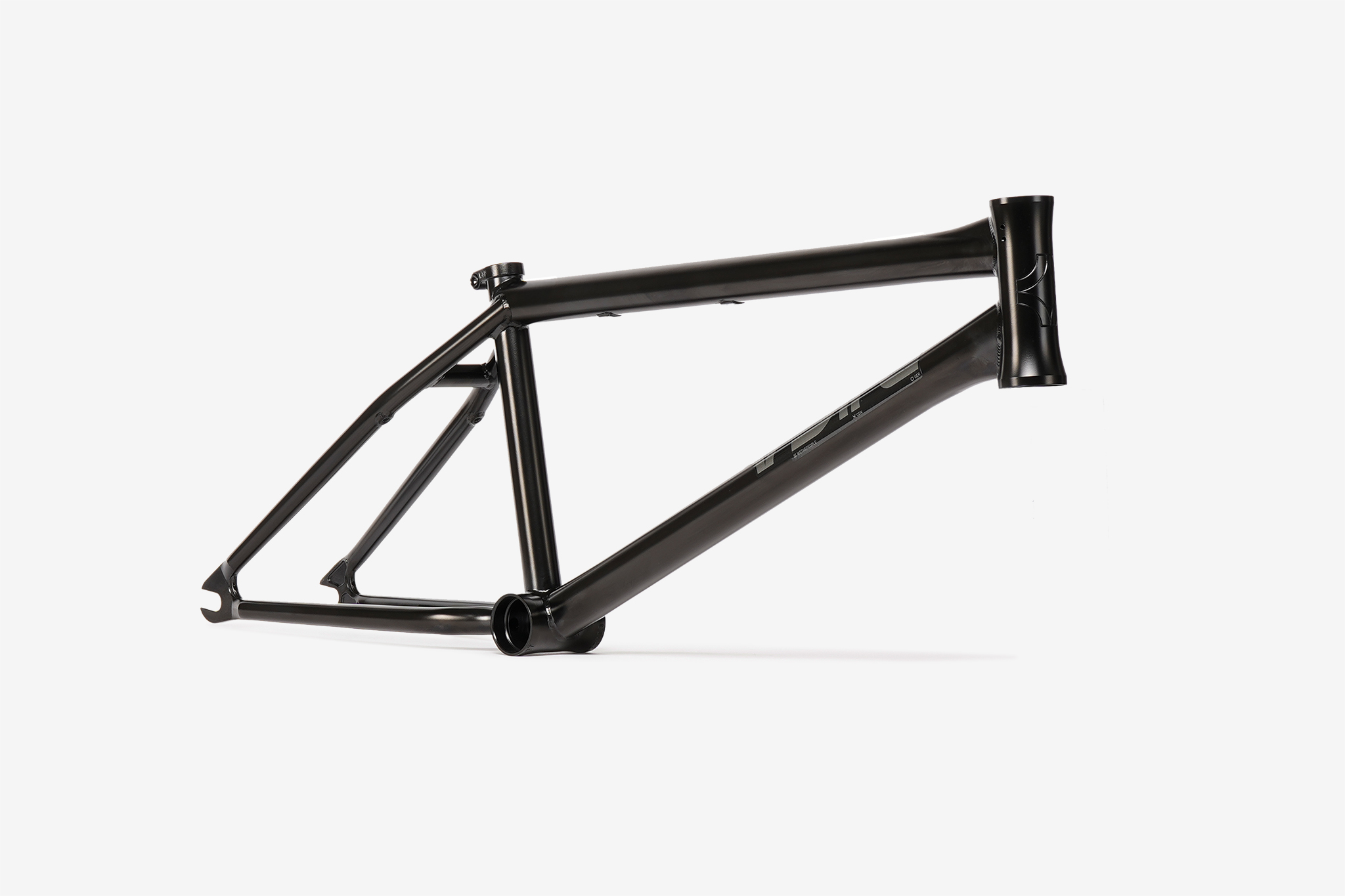

MURRAY LOUBSER SIGNATURE FRAME - 20.5" / 20.75" / 21"

ARC

colors:

arrow-left

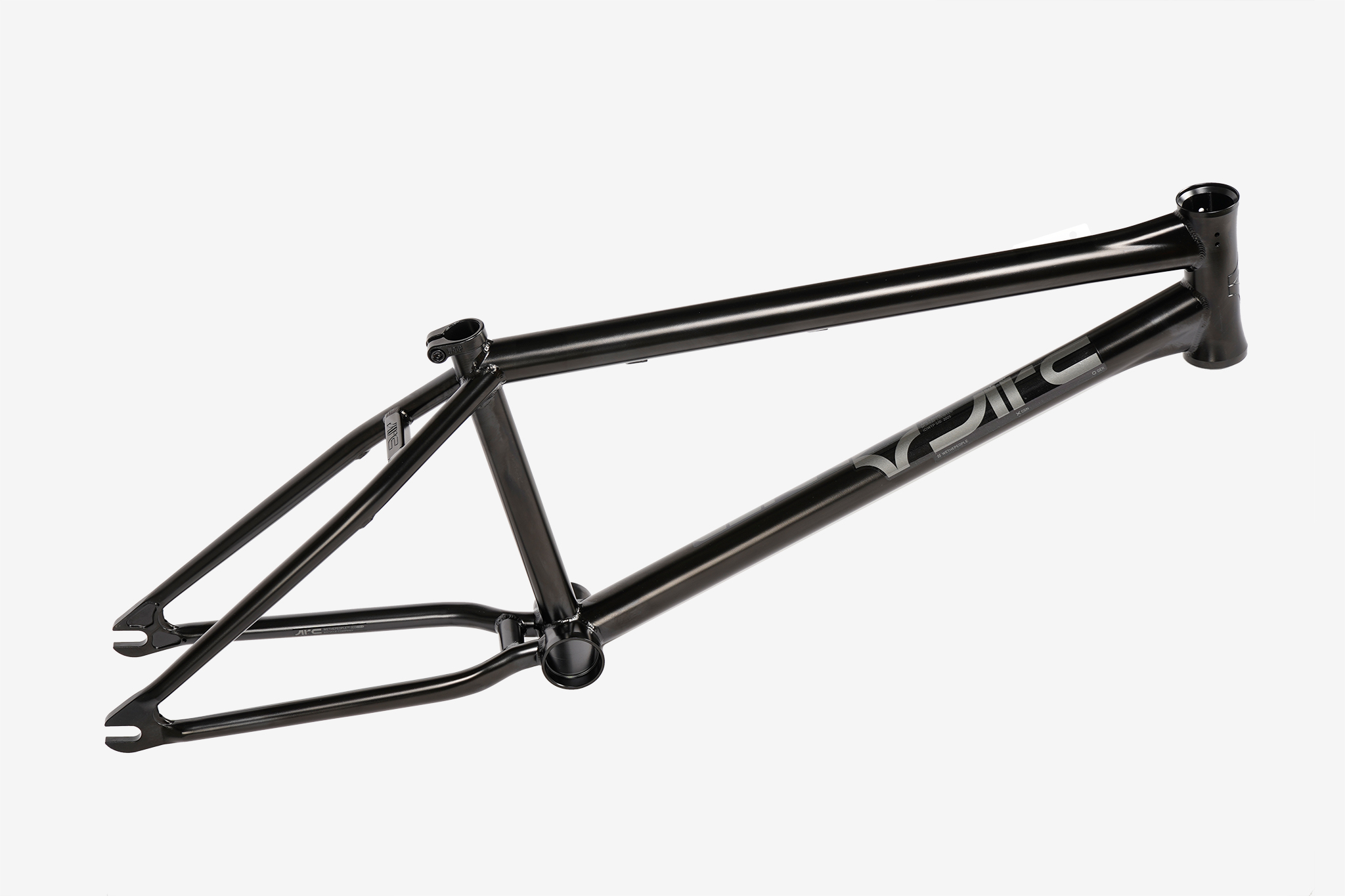

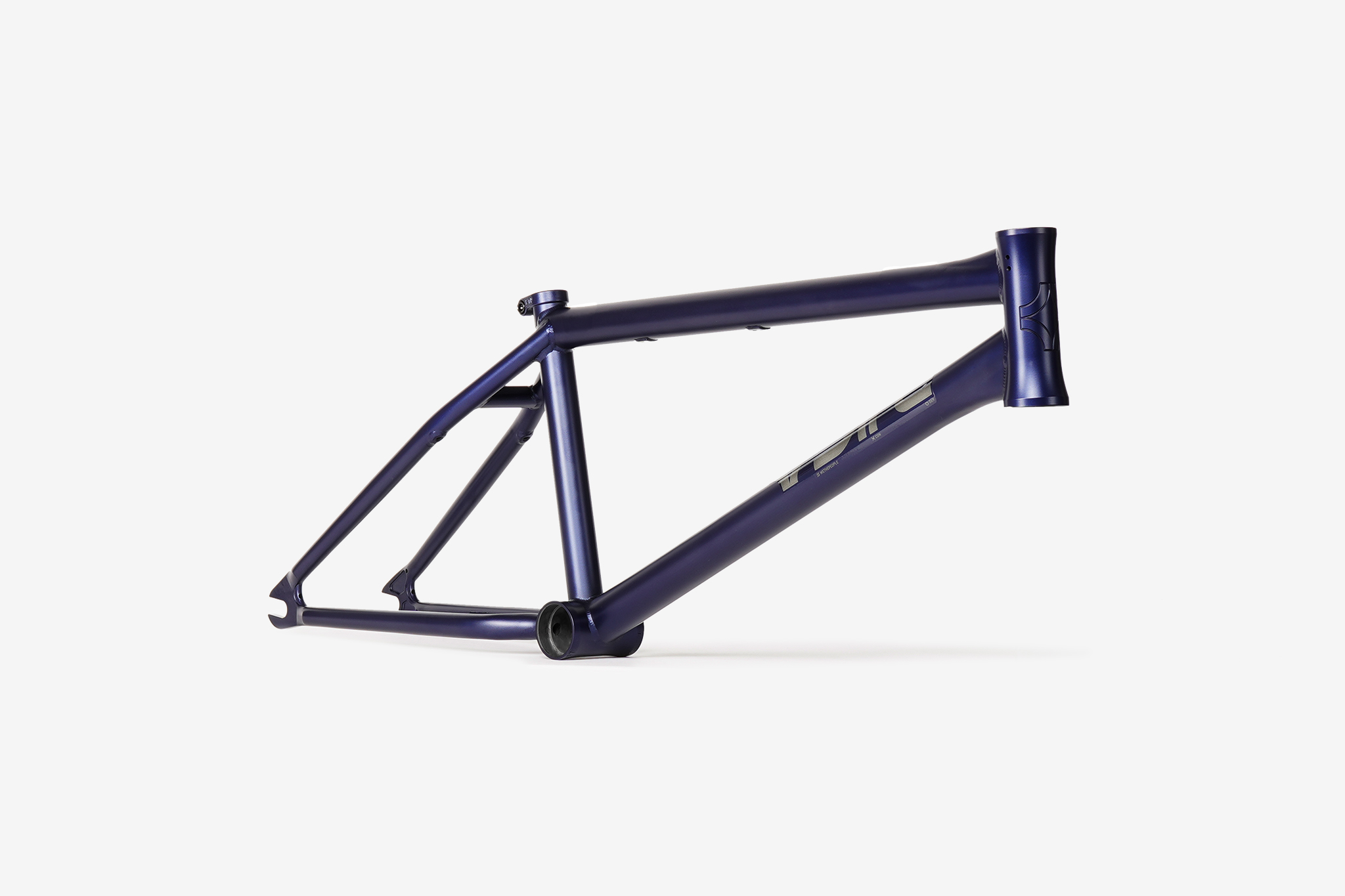

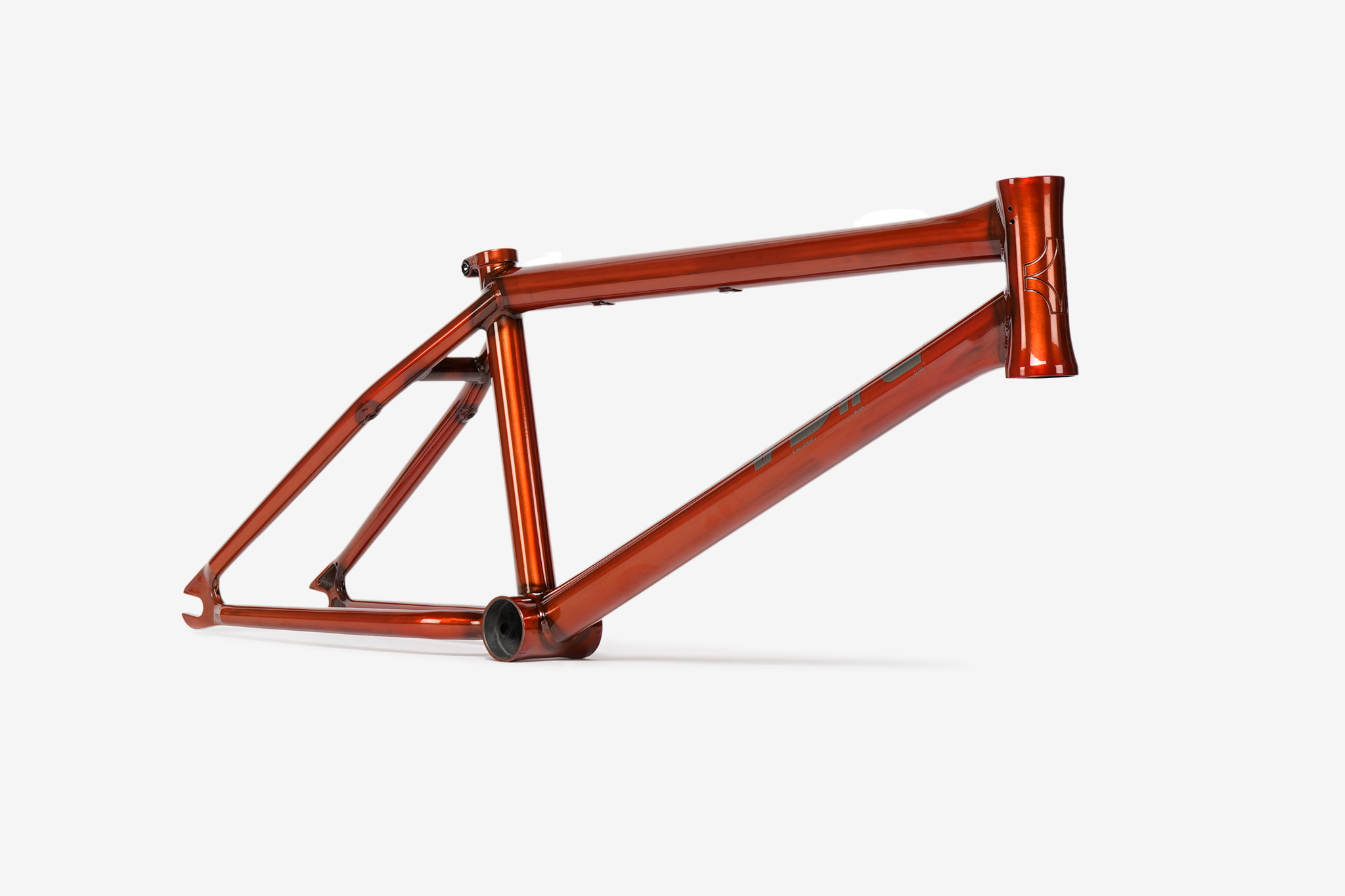

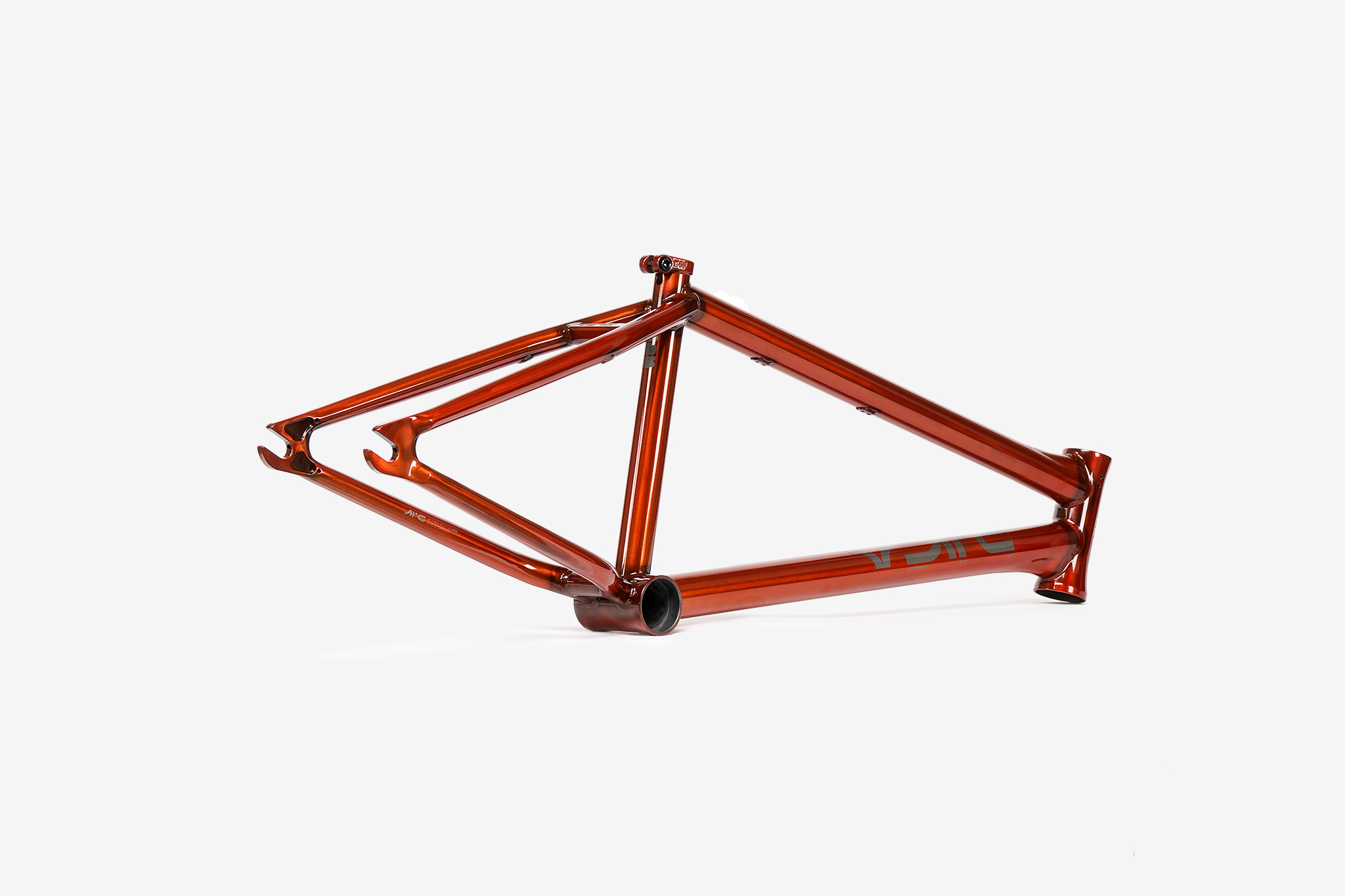

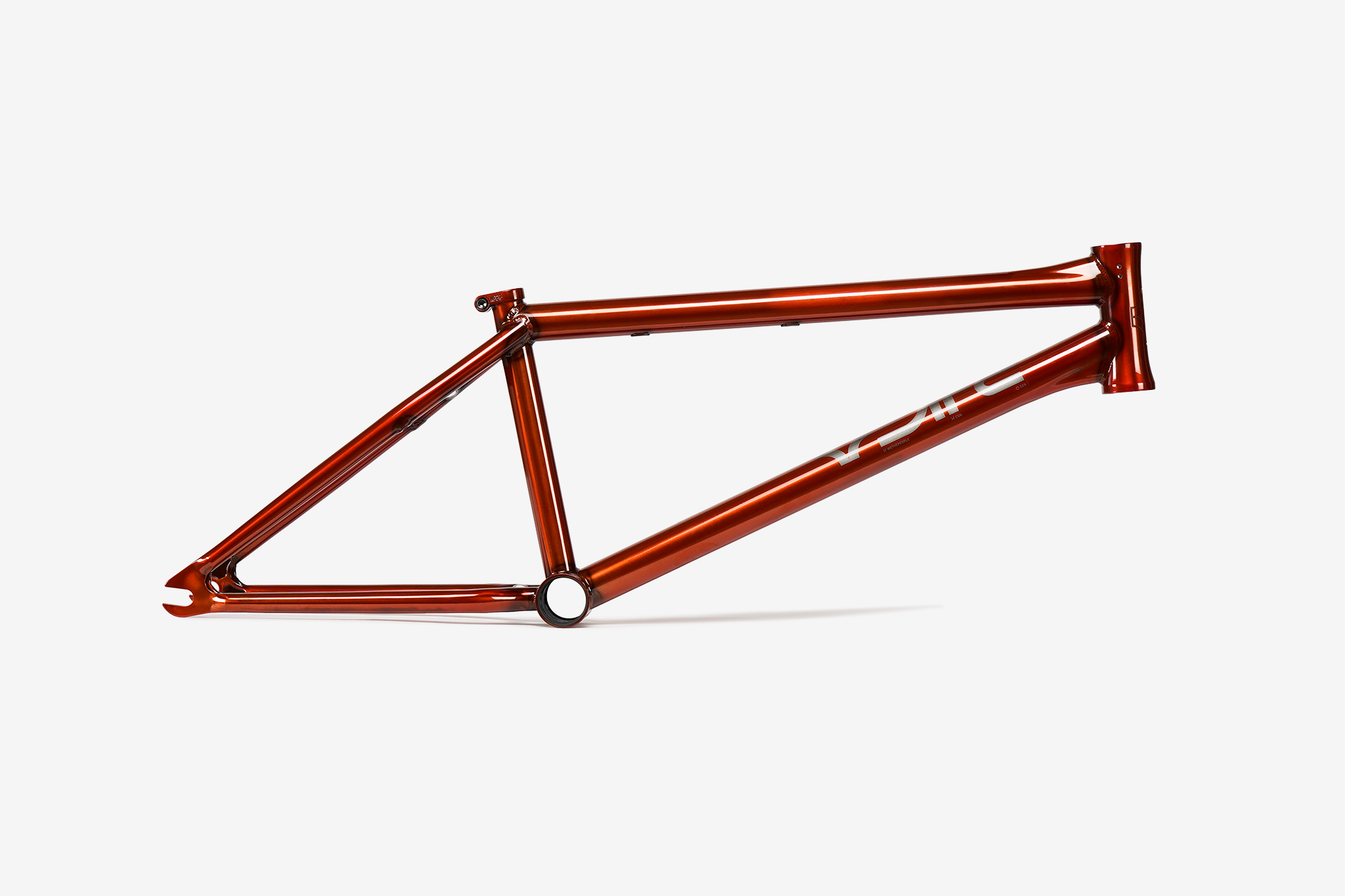

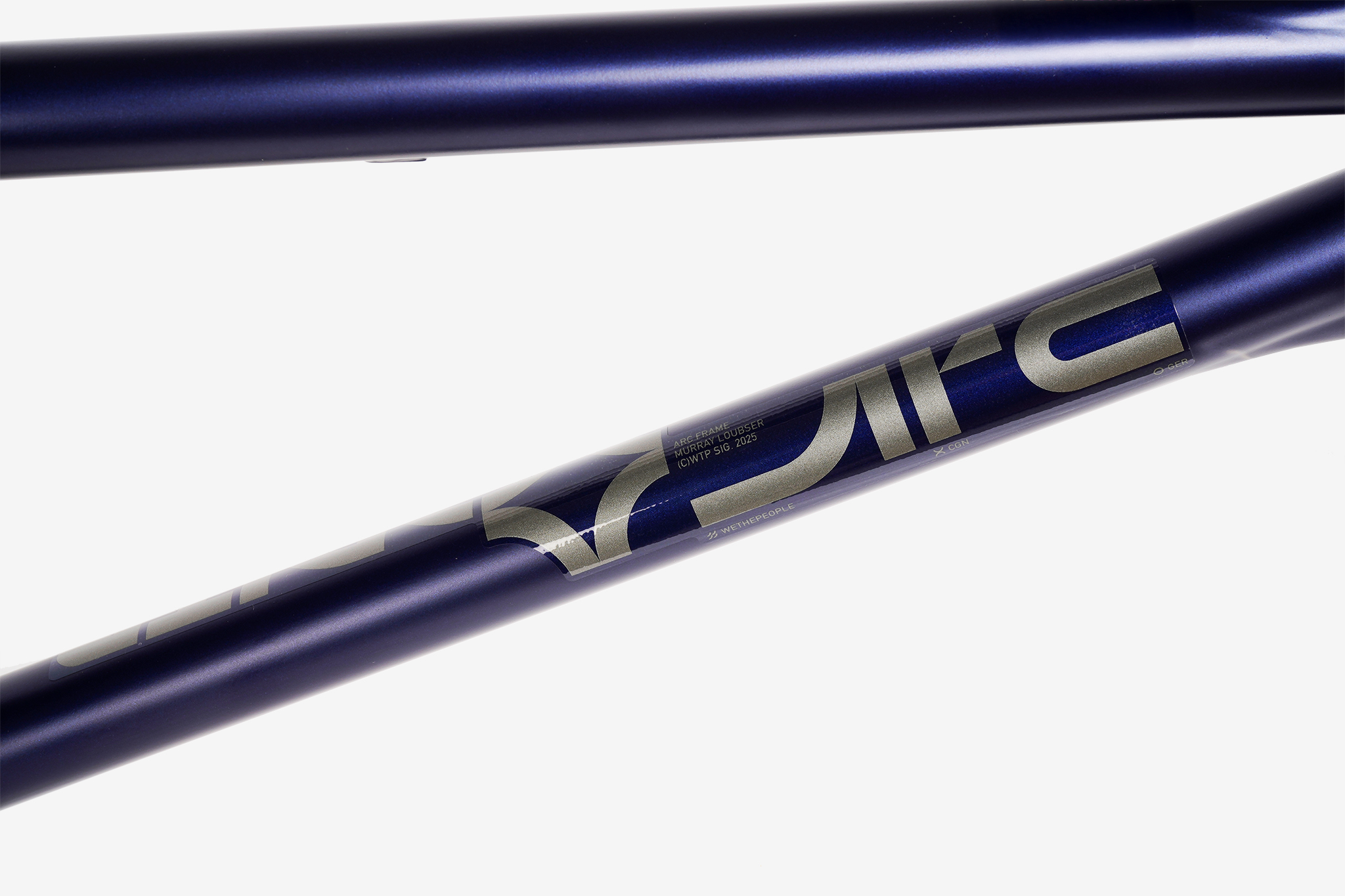

Designed in collaboration with new-school tech powerhouse Murray Loubser, the all-new Wethepeople ARC Frame is a true embodiment of style, precision, and innovation. Built to tackle the streets and beyond, this frame represents a seamless blend of strength and agility, just like Murray's unique riding style. Blending the geometry and features of Murray’s favourite Wethepeople frames, the ARC Frame uses a shorter wheelbase and slacker seat tube angle to create a bike that is as nimble as it is tough. With meticulous attention to detail, the ARC Frame incorporates reinforced hydroformed tubing, thicker dropouts, and subtle CNC artwork, ensuring durability without sacrificing the sleek, streamlined appearance. A true representation of the progression of street riding.

ARC

ARC

ARC

ARC

ARC

SPECIFICATIONS

plus
TUBING:
butted, Japanese seamless 4130 crmo tubing

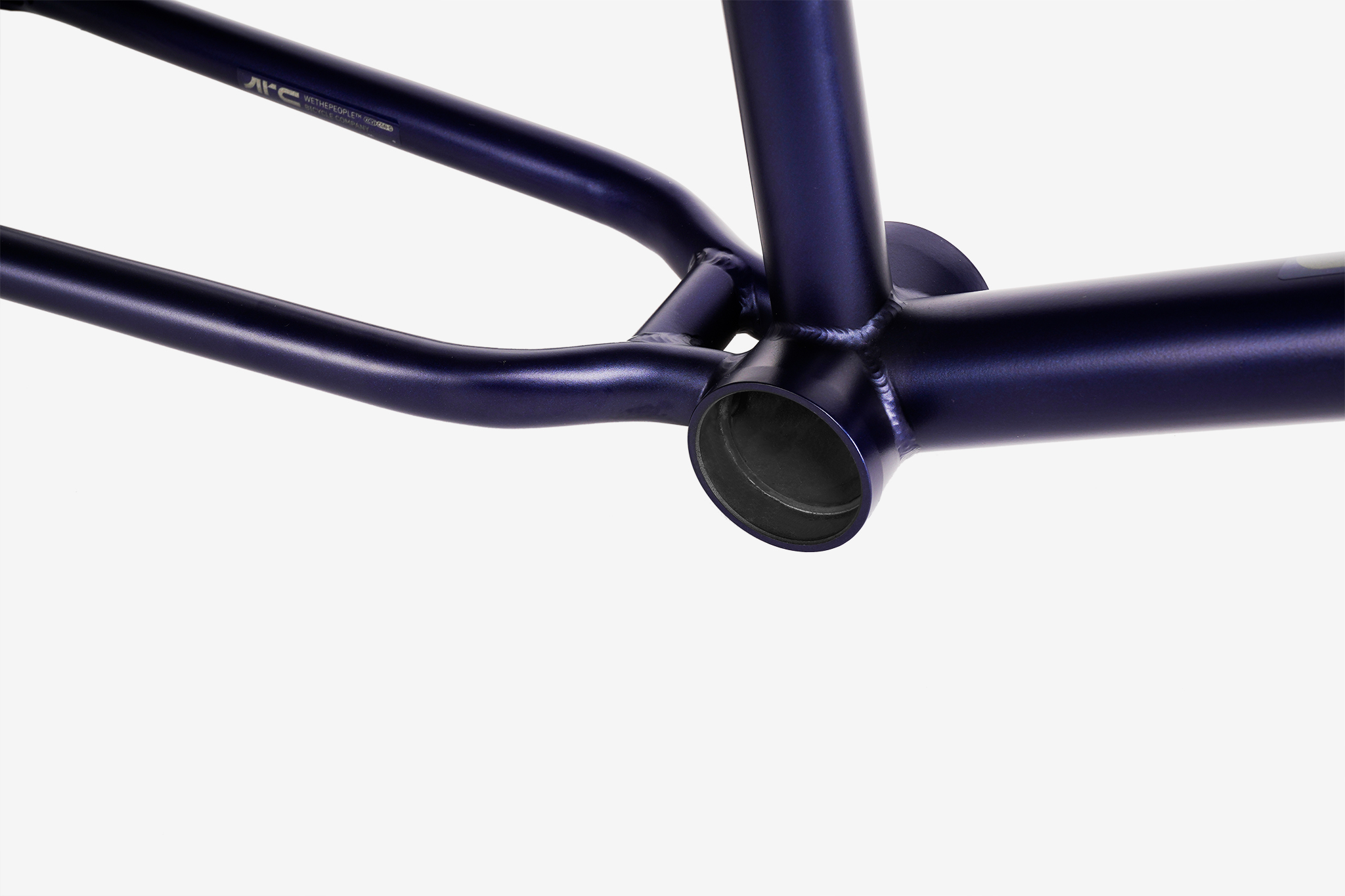

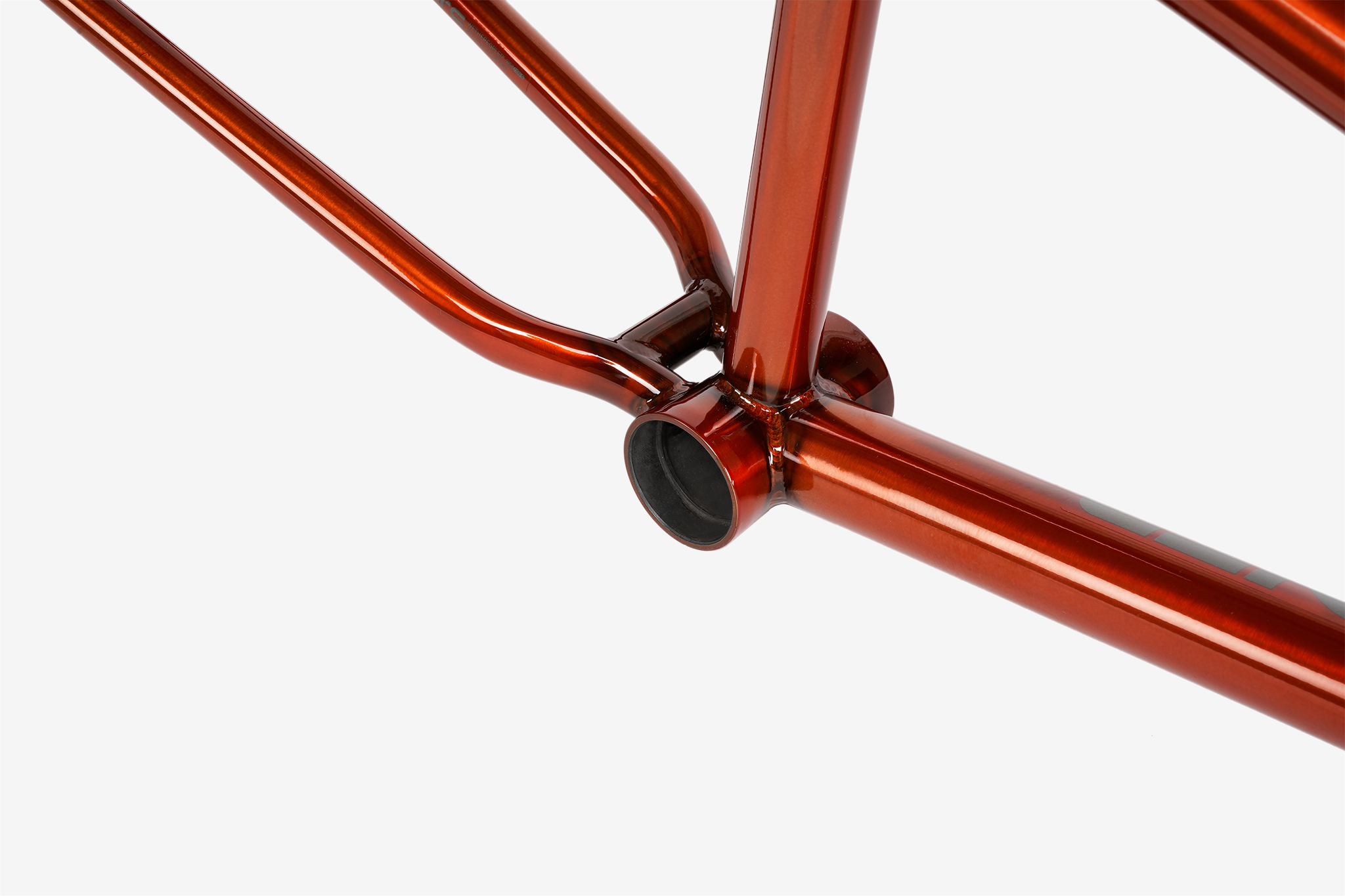

BOTTOM BRACKET:
74mm mid size, offset cnc machined and heat-treated

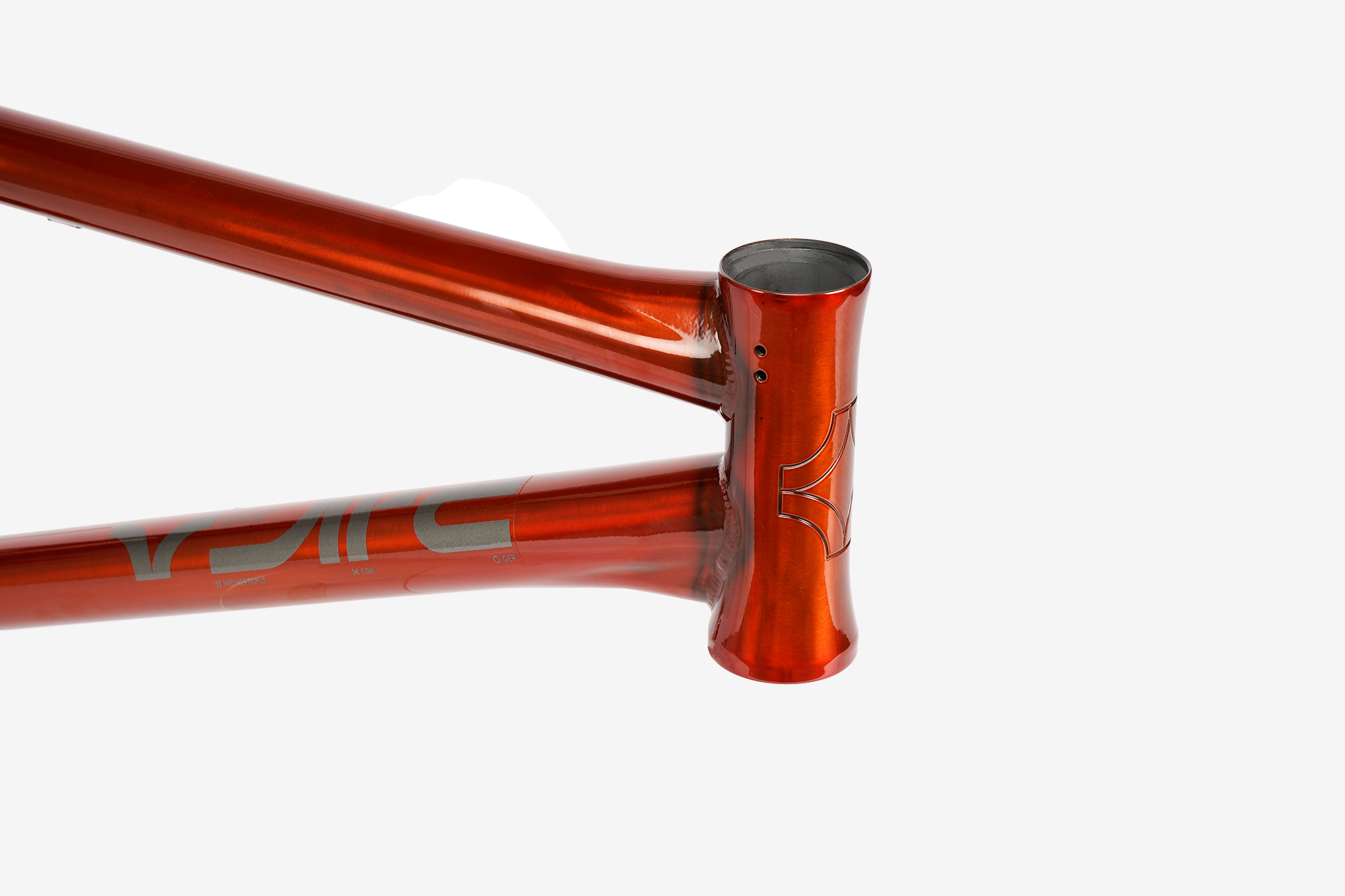

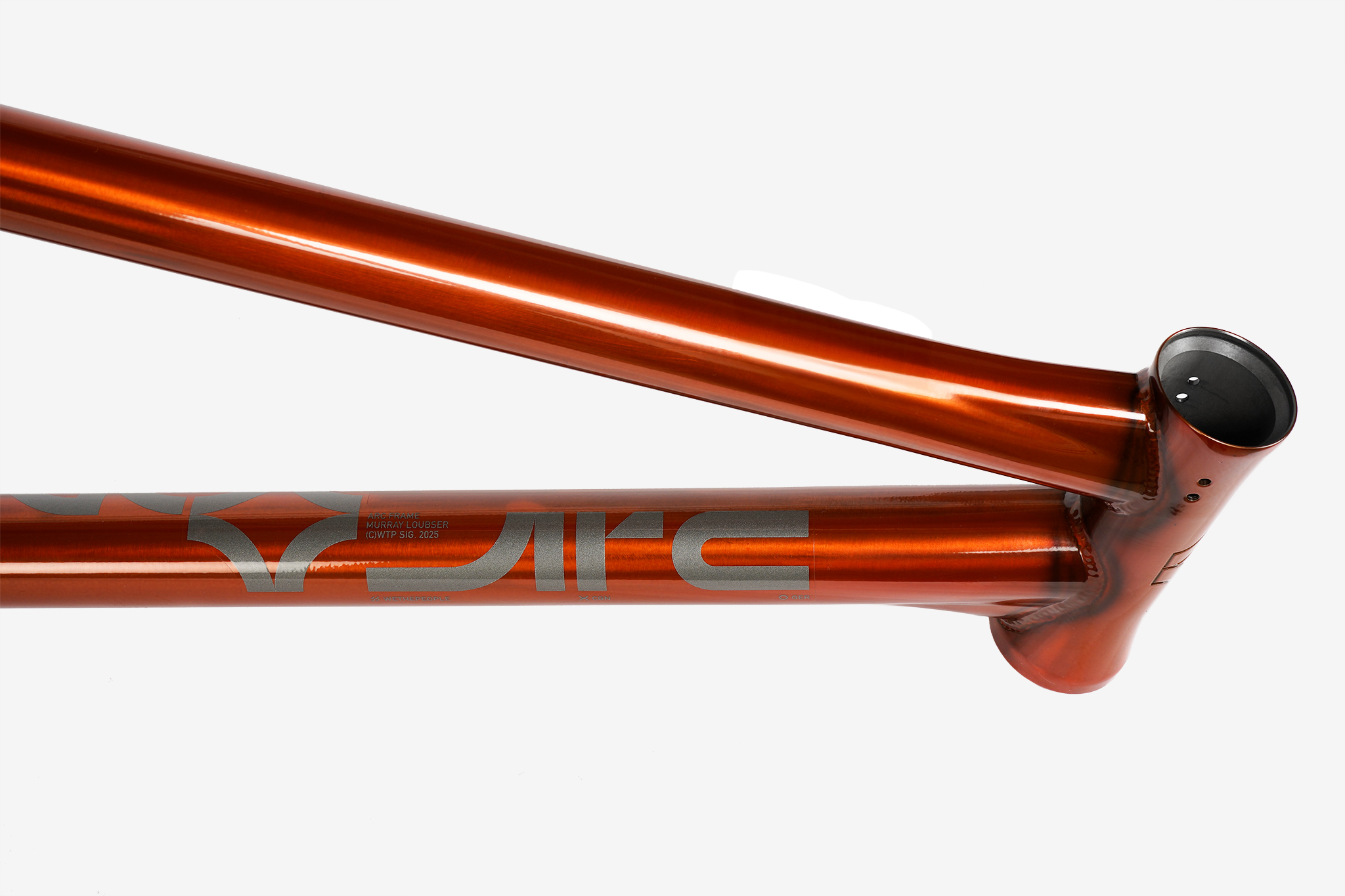

HEAD TUBE:

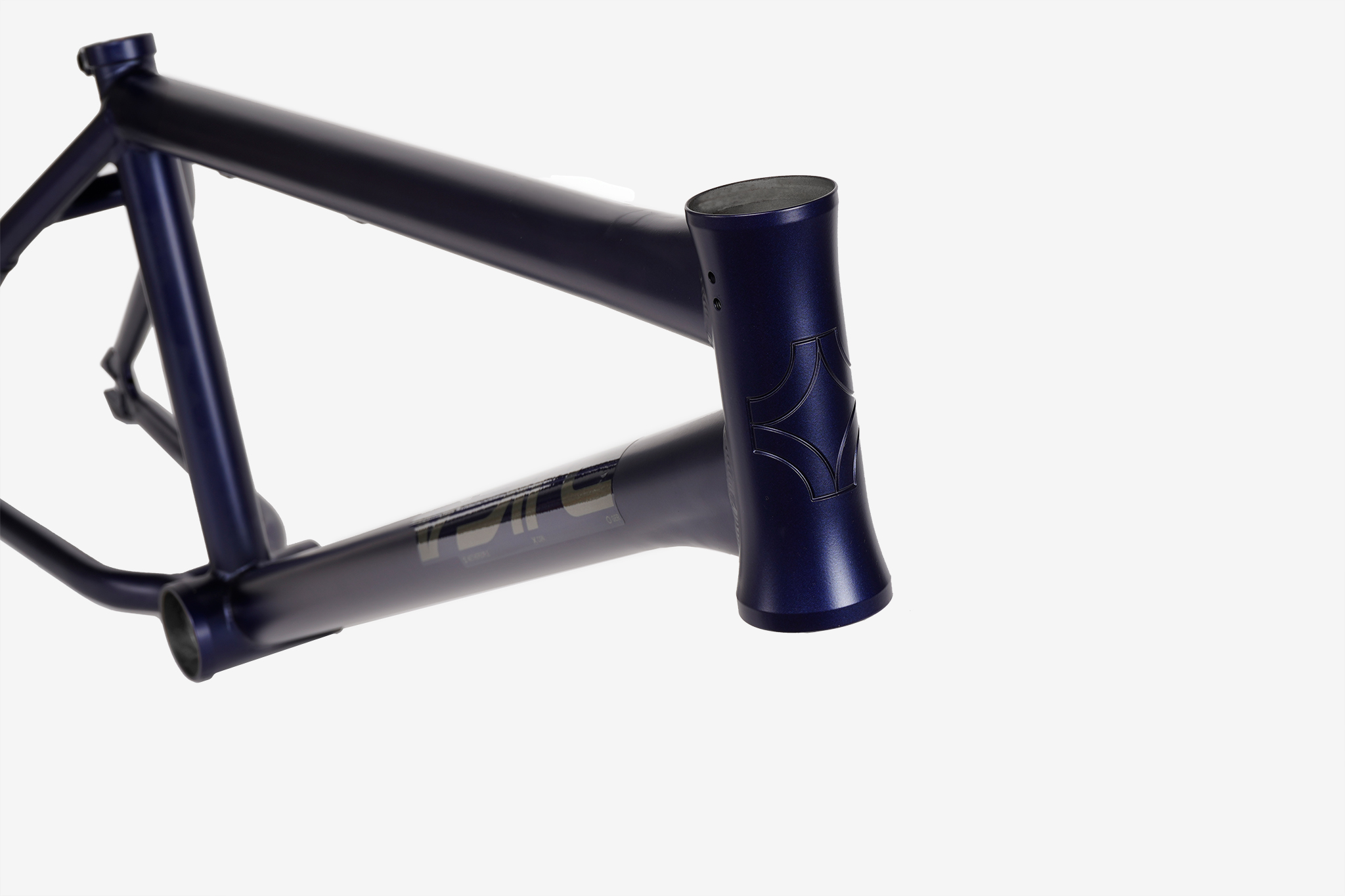

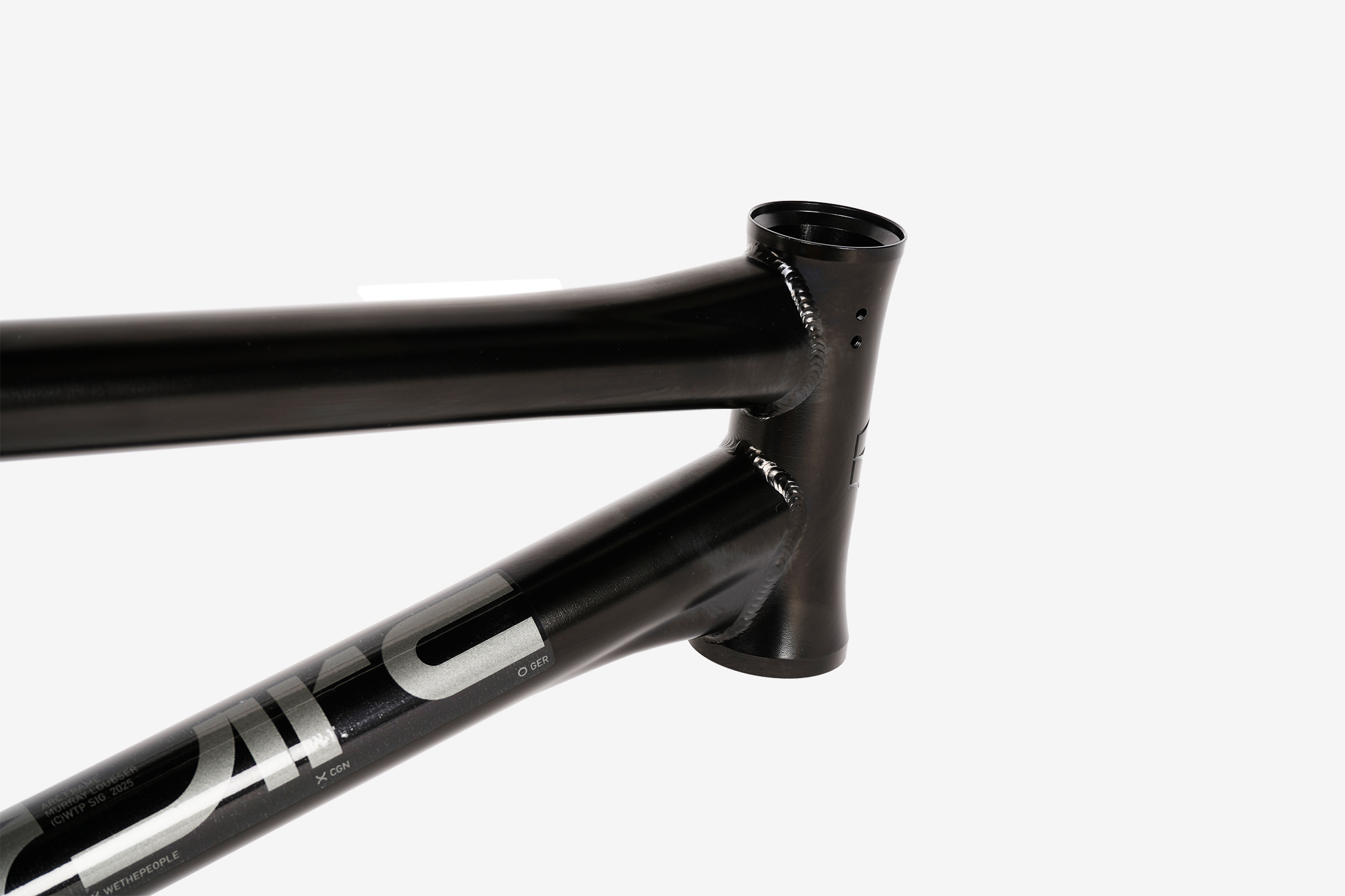

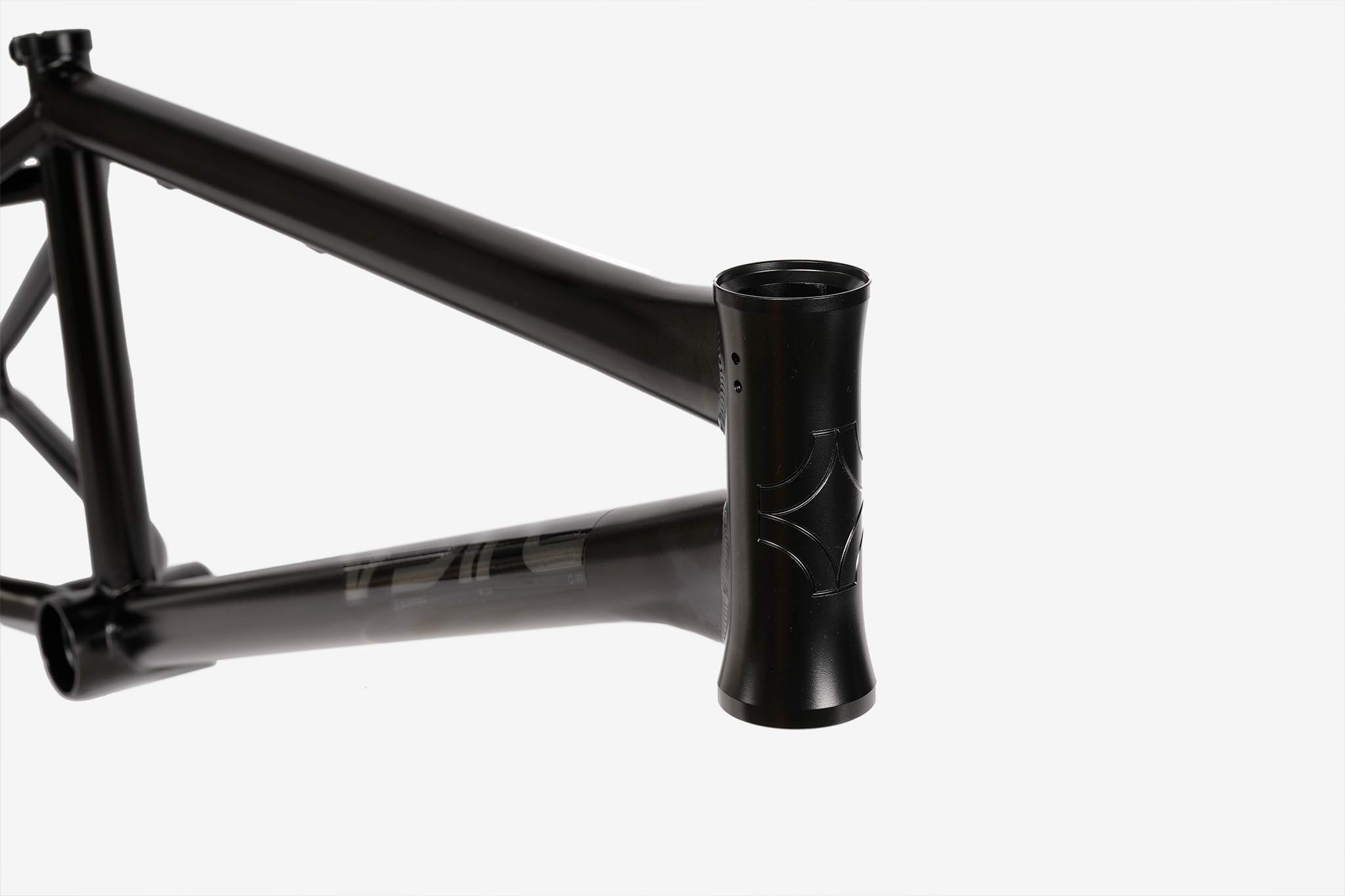

127mm cnc machined and heat-treated, integ. h/set, holes for rotor tabs
DROPOUTS:

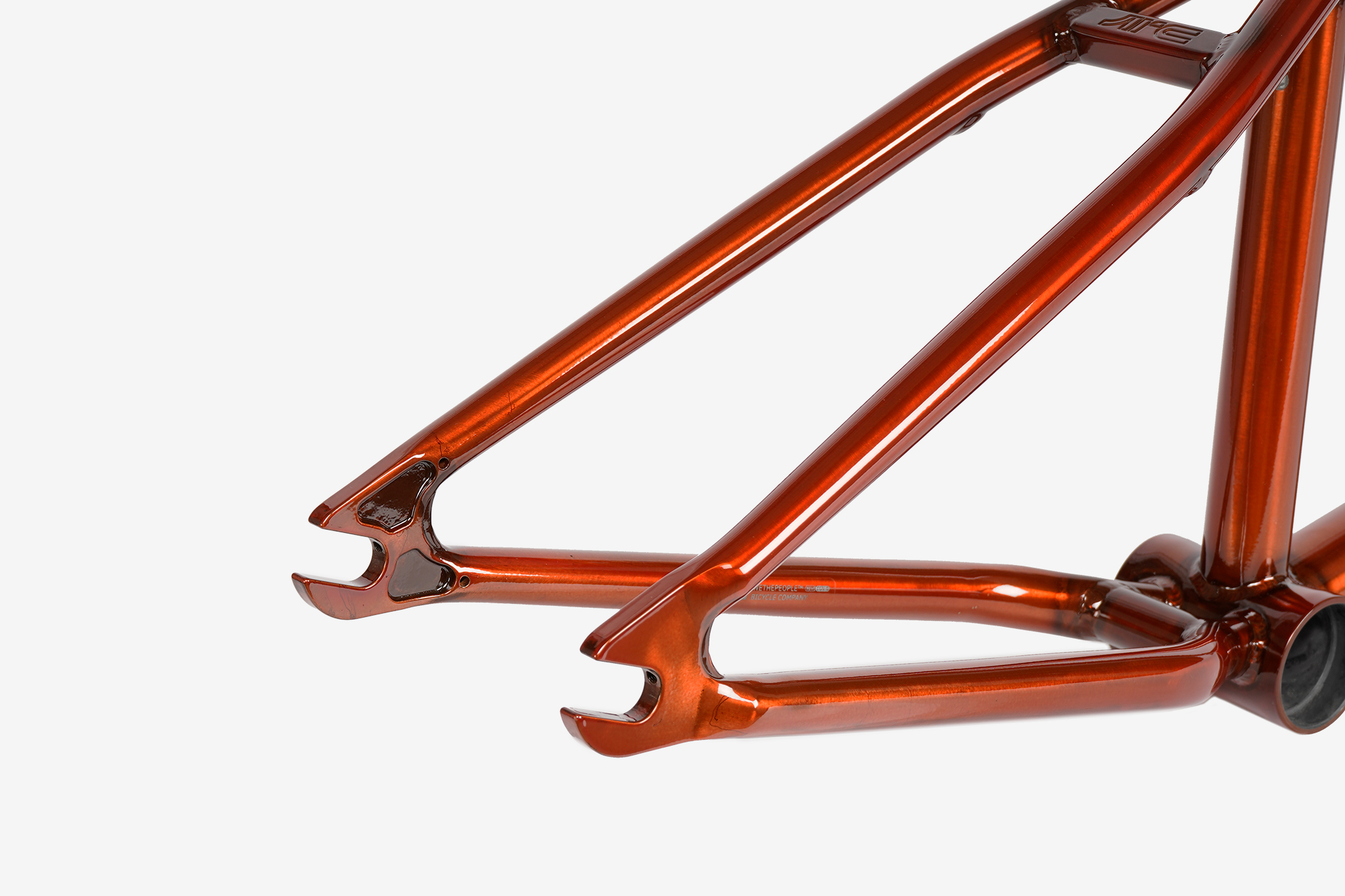

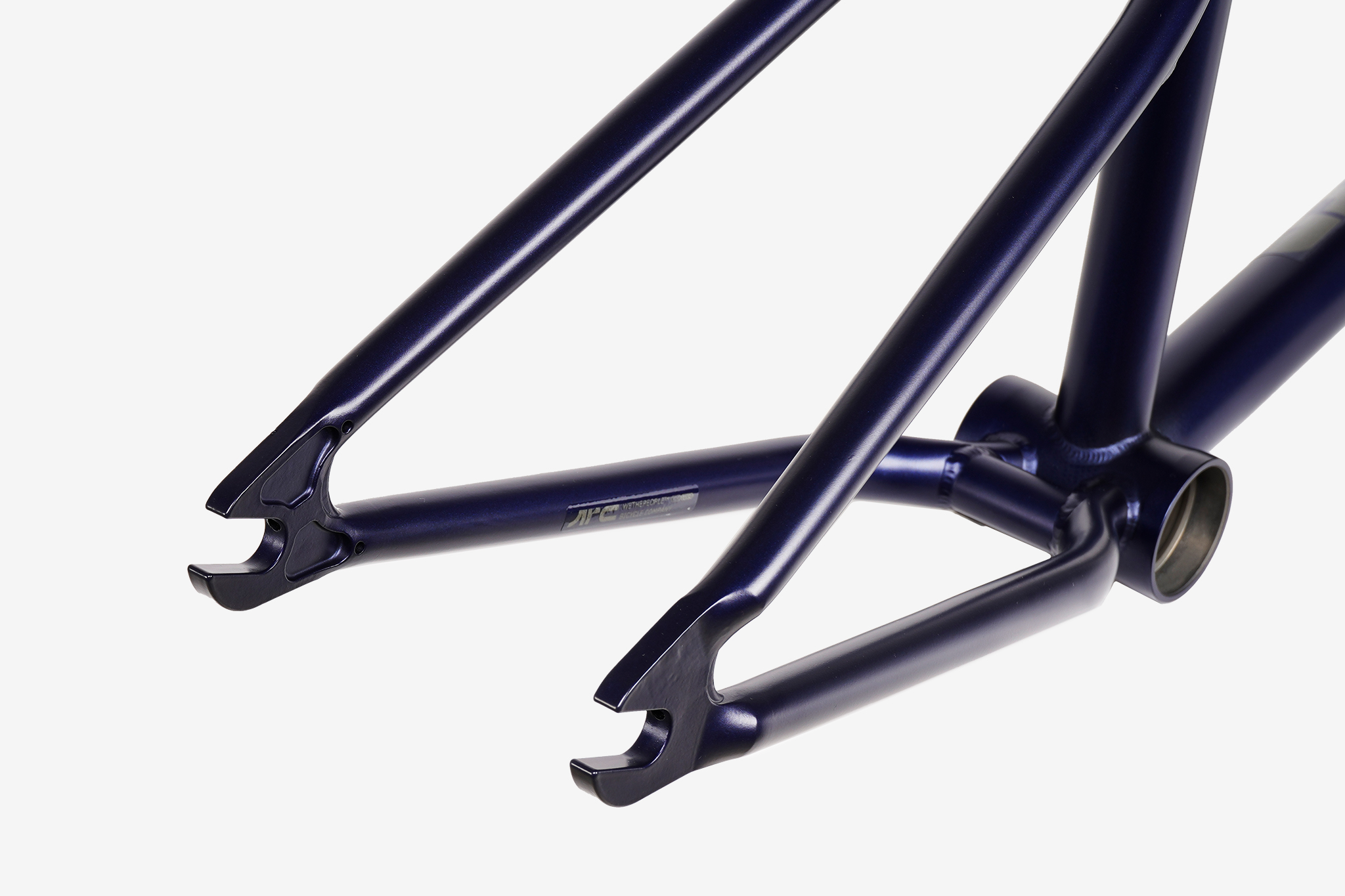

Invest casted 7.5mm thick, integrated chain tensioners, heat-treated 4130 crmo, perfect shape for pegs and hub guards
BRAKES:
brakeless frame
SPECIAL FEATURES:

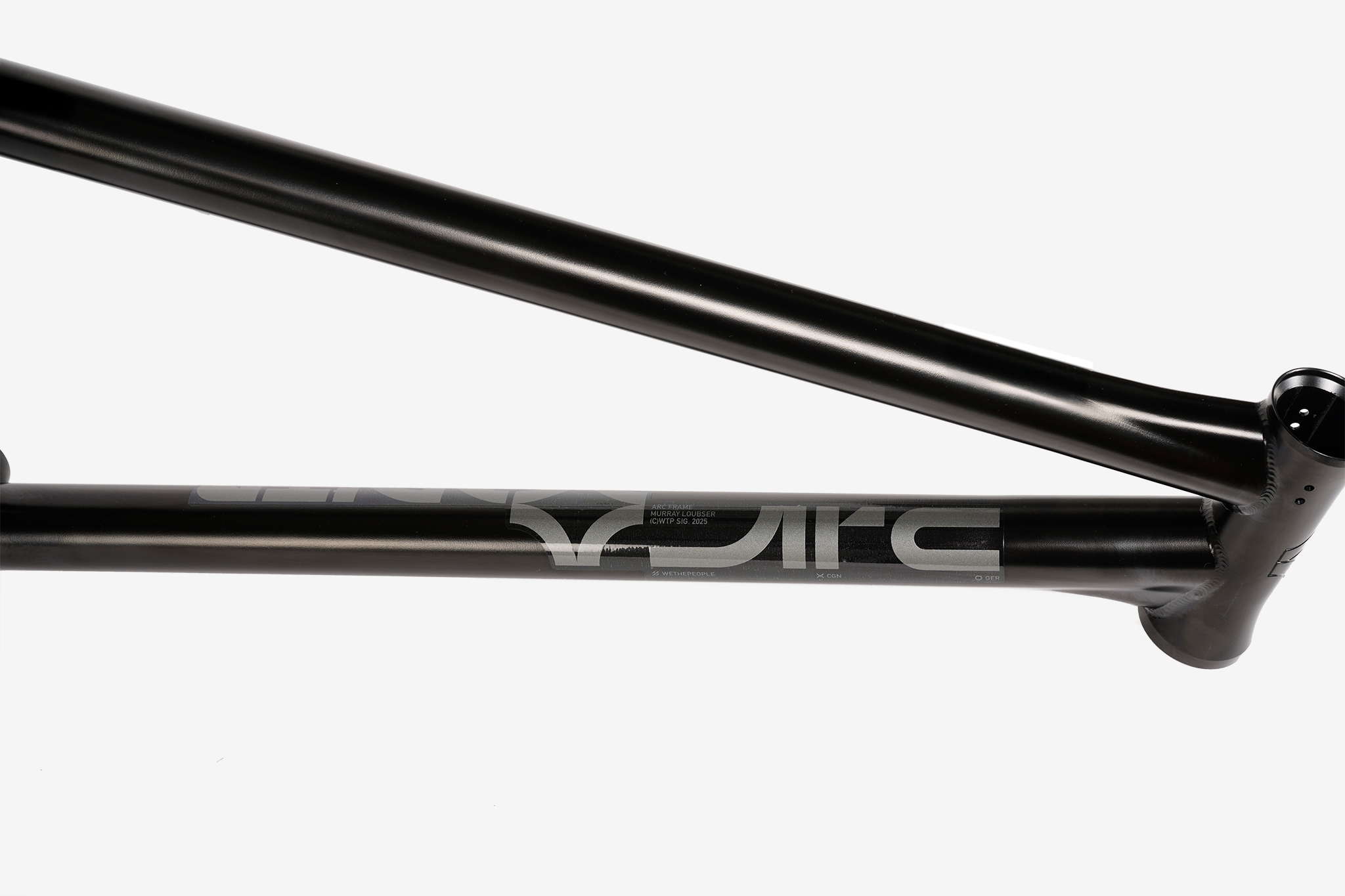

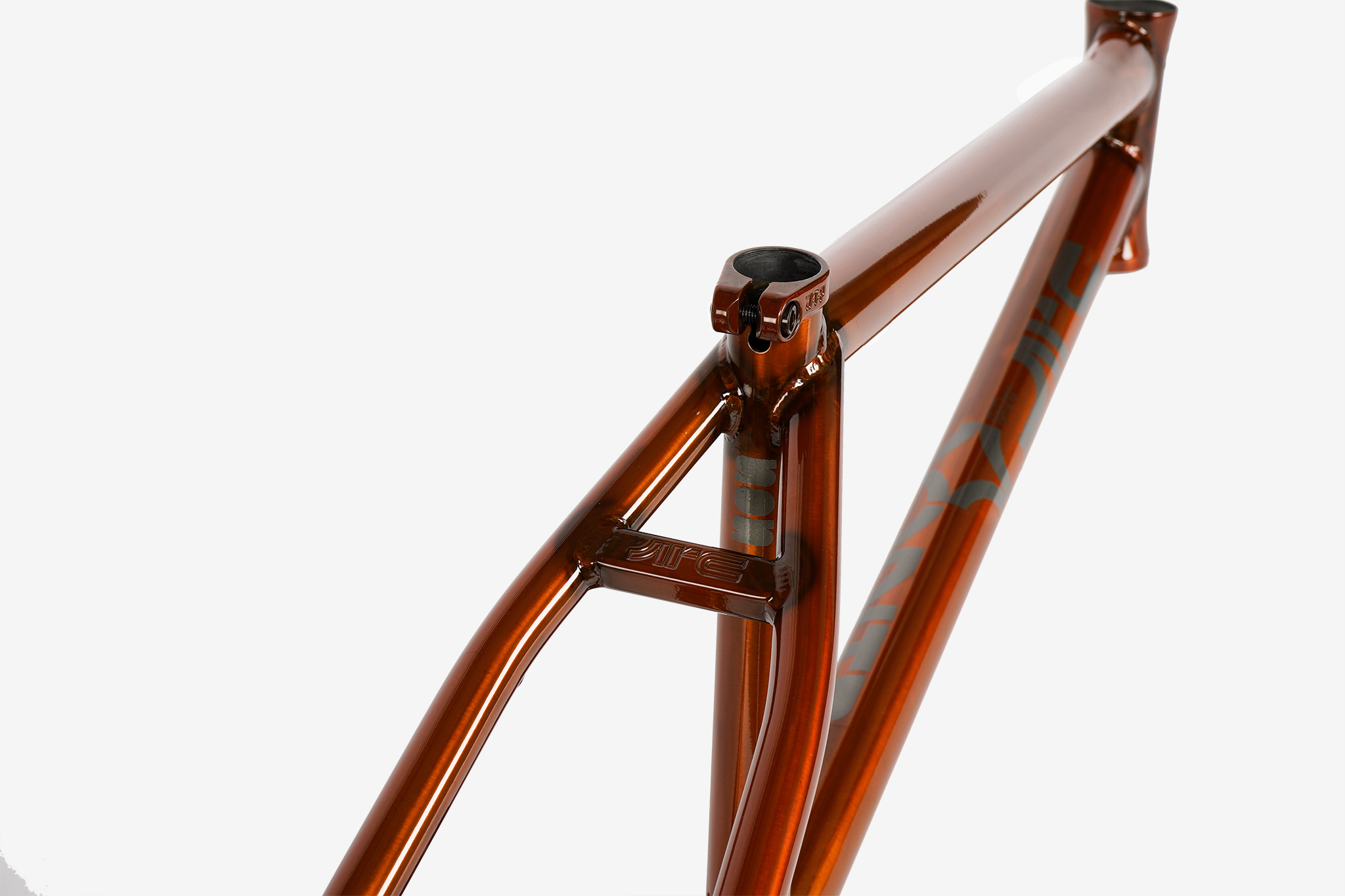

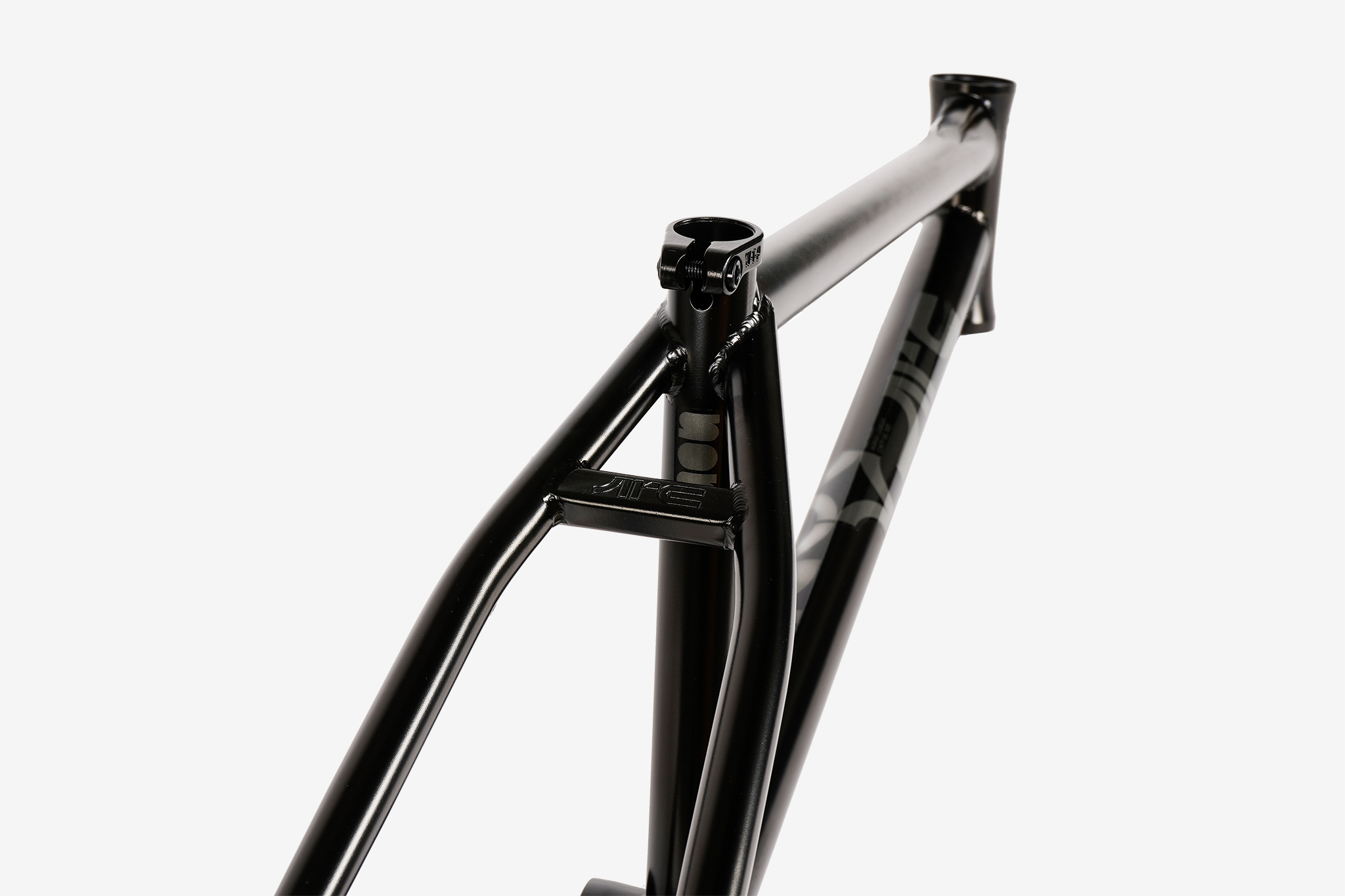

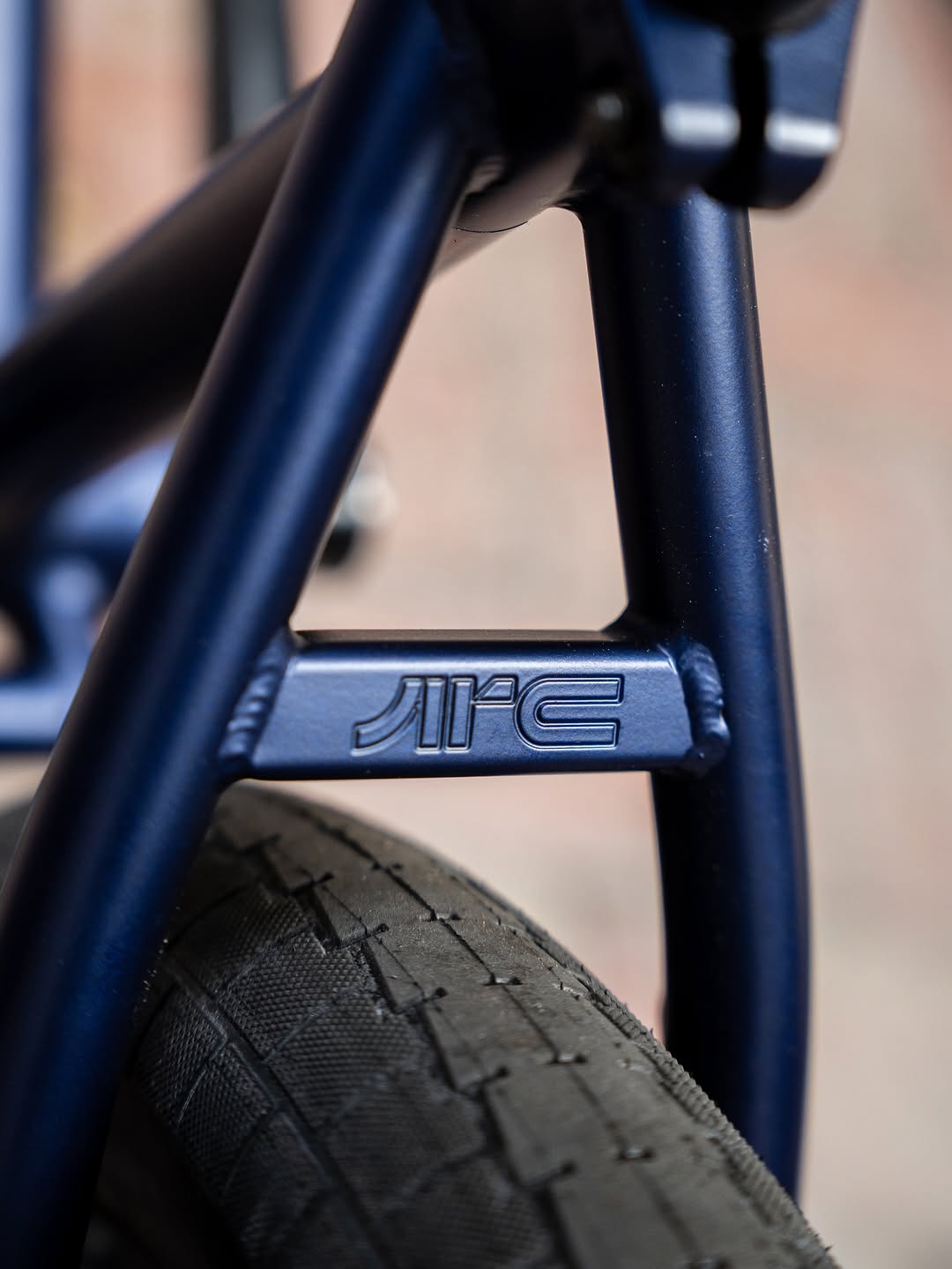

• Murray Loubser signature frame • responisve and technical street frame • hydroformed top tube and down tube for superior strength and stiffness • short 12.75” chainstay and steeper 76.1 degree headtube for reduced wheelbase • smaller dropout shape for no overhang with pegs for smoother grinds • slacker 70 degree seat tube angle creates shorter reach • larger 1.8mm welding at head tube • extra thick double butted top tube • box setcion seat and chain stay braces for increased stiffness • CNC detailing on head tube and seat stay bridge • ovalized chain stays for increased tire & sprocket clearance • wider rear triangle allows clearance for a 2.5" tire • investment cast seat clamp
COLORS:
Translucent Brown
/

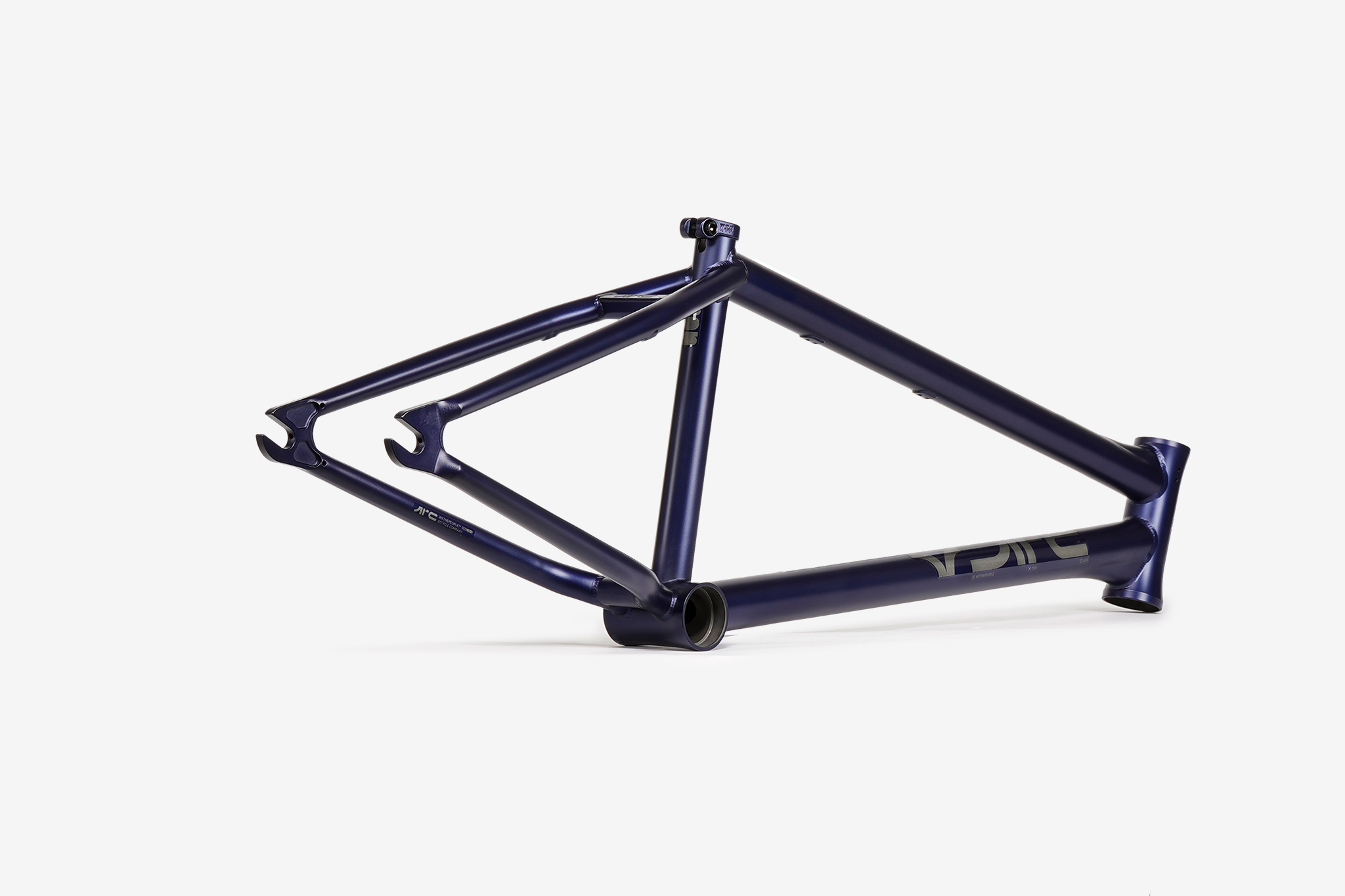

Matt Indigo
/

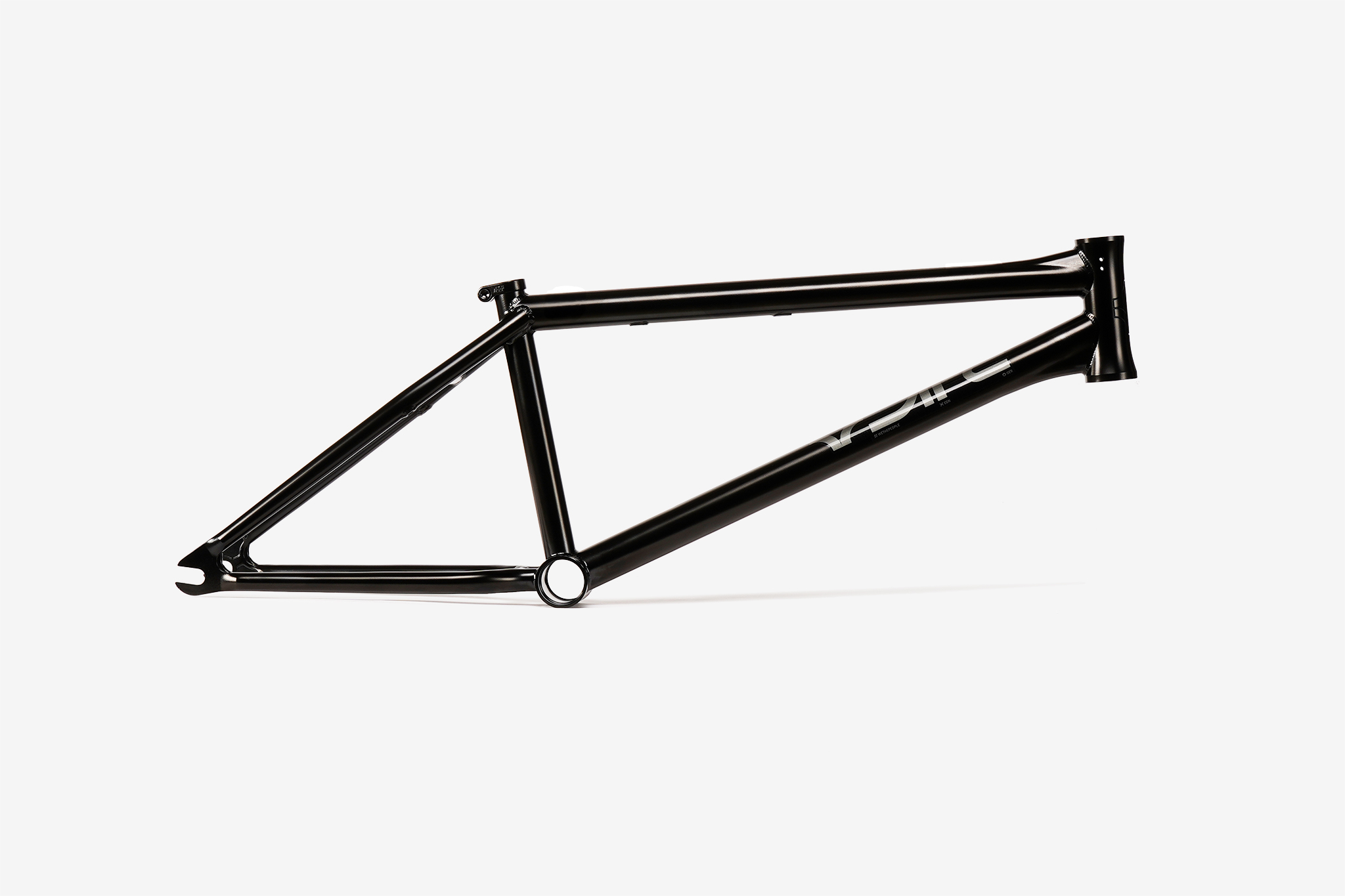

Black
WEIGHT:
2.54kg (89.59oz : 5.59lbs) - 20.75"

GEOMETRY

plus
A - TOP TUBE LENGTH:
20.5", 20.75", 21"
B - CHAIN STAY LENGTH:
12.75" - 13.1" - optimized for 12.75" w/25-9
C - HEAD TUBE ANGLE:
76.1°
D - SEAT TUBE ANGLE:
70°
E - BB HEIGHT:
11.8"
F - STANDOVER HEIGHT:
9.6"
