PARK FRAME - 19.75" / 20.35" / 20.75" / 21"

FLASH

colors:

arrow-left

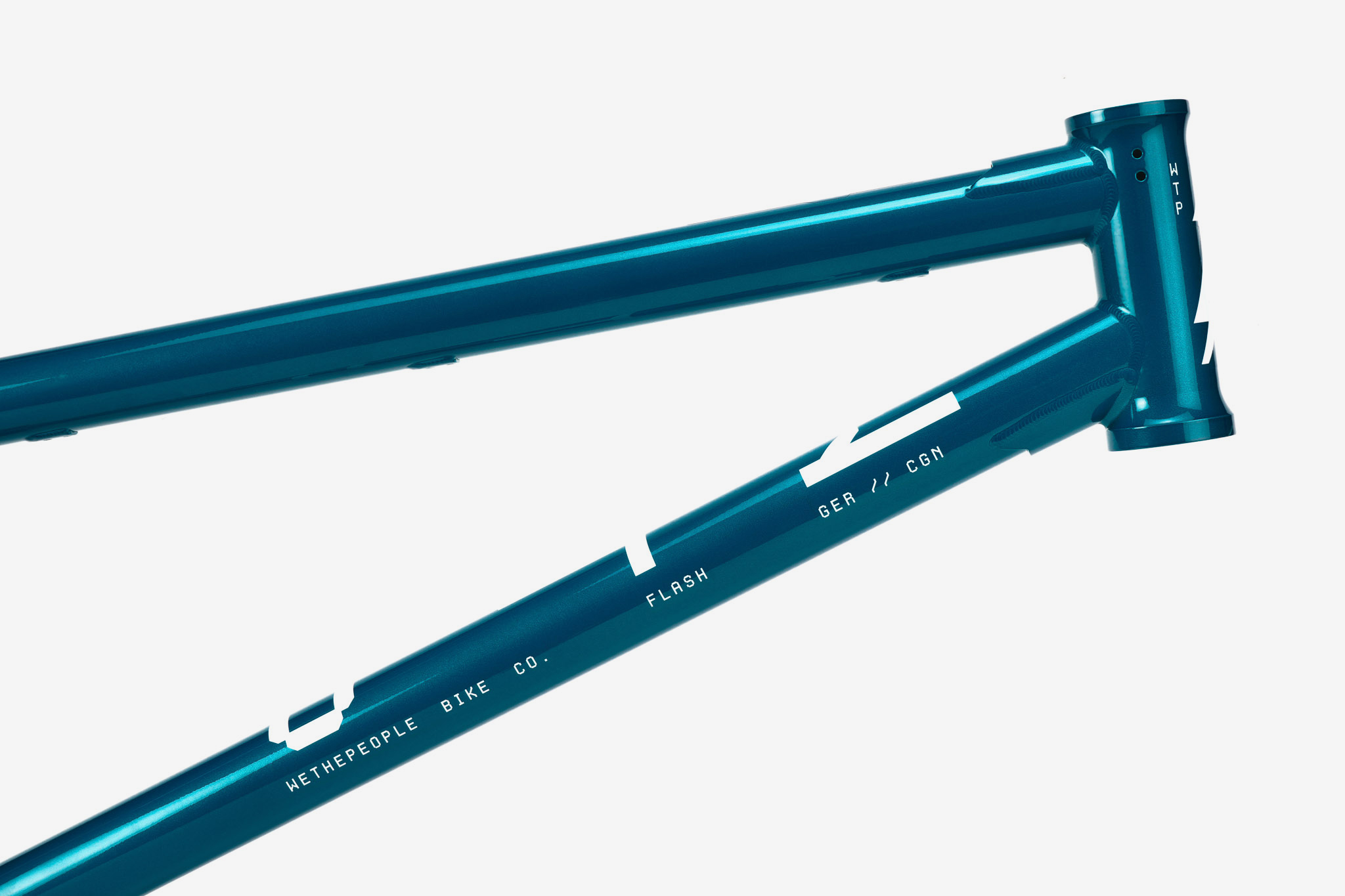

Building on the success of the Message frame, the all-new Flash Frame takes things to the next level with a focus on ultra-lightweight construction and modern park geometry. Designed for riders who demand a responsive, technical setup without compromising strength, the Flash is our most refined park frame to date. Available in four size options, the Flash ensures a perfect fit for every type of park rider – from young shredders to seasoned pros. With a lower standover height and fast handling, it's built for blasting airs, dialling in tech tricks, and pushing progression at every session. Lightweight, dialled and built to last, the flash frame includes Lifetime Guarantee.

FLASH

FLASH

FLASH

FLASH

FLASH

SPECIFICATIONS

plus
TUBING:
butted, Japanese seamless 4130 crmo tubing
BOTTOM BRACKET:

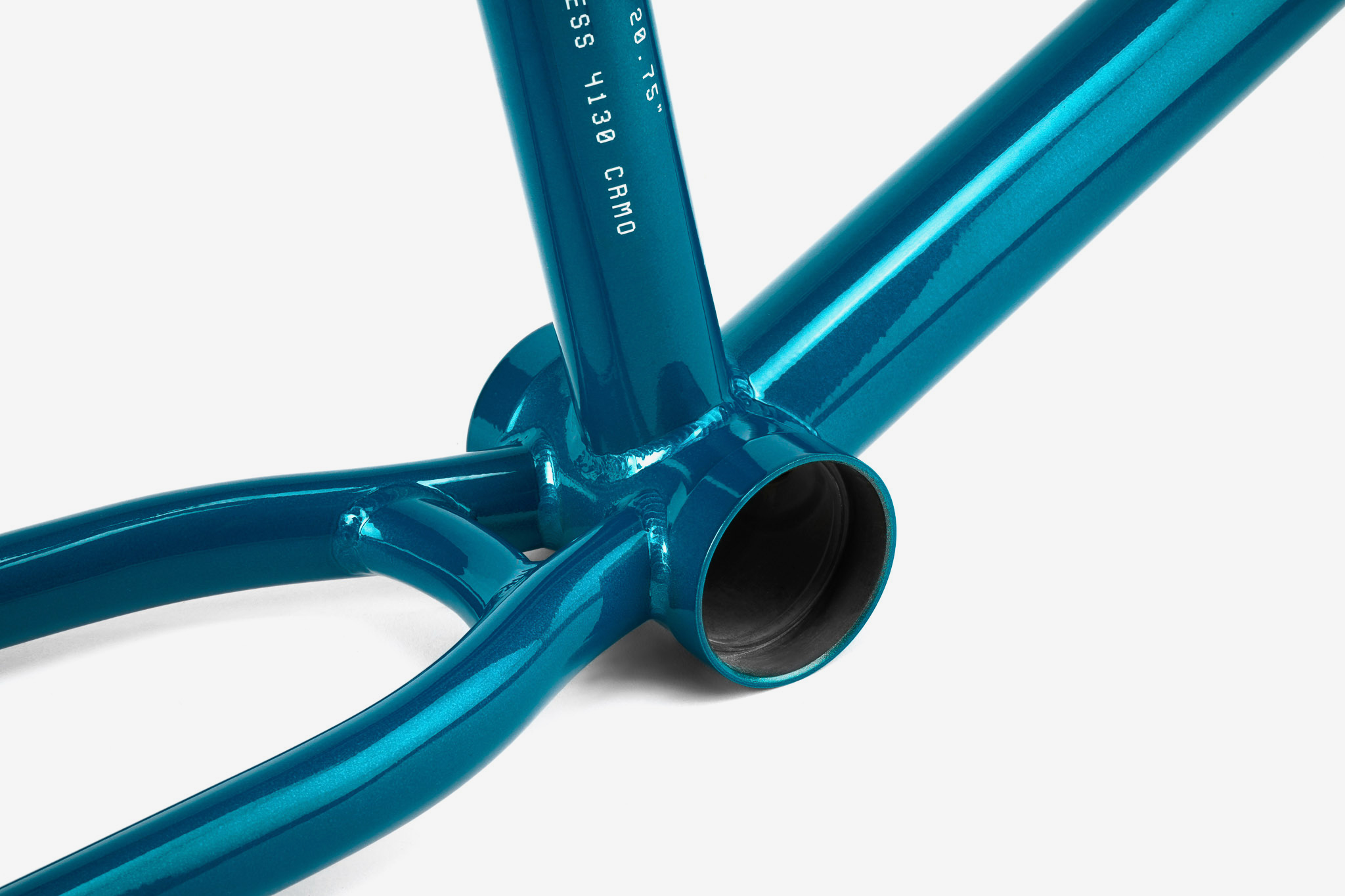

74mm mid size, cnc machined and heat-treated
HEAD TUBE:

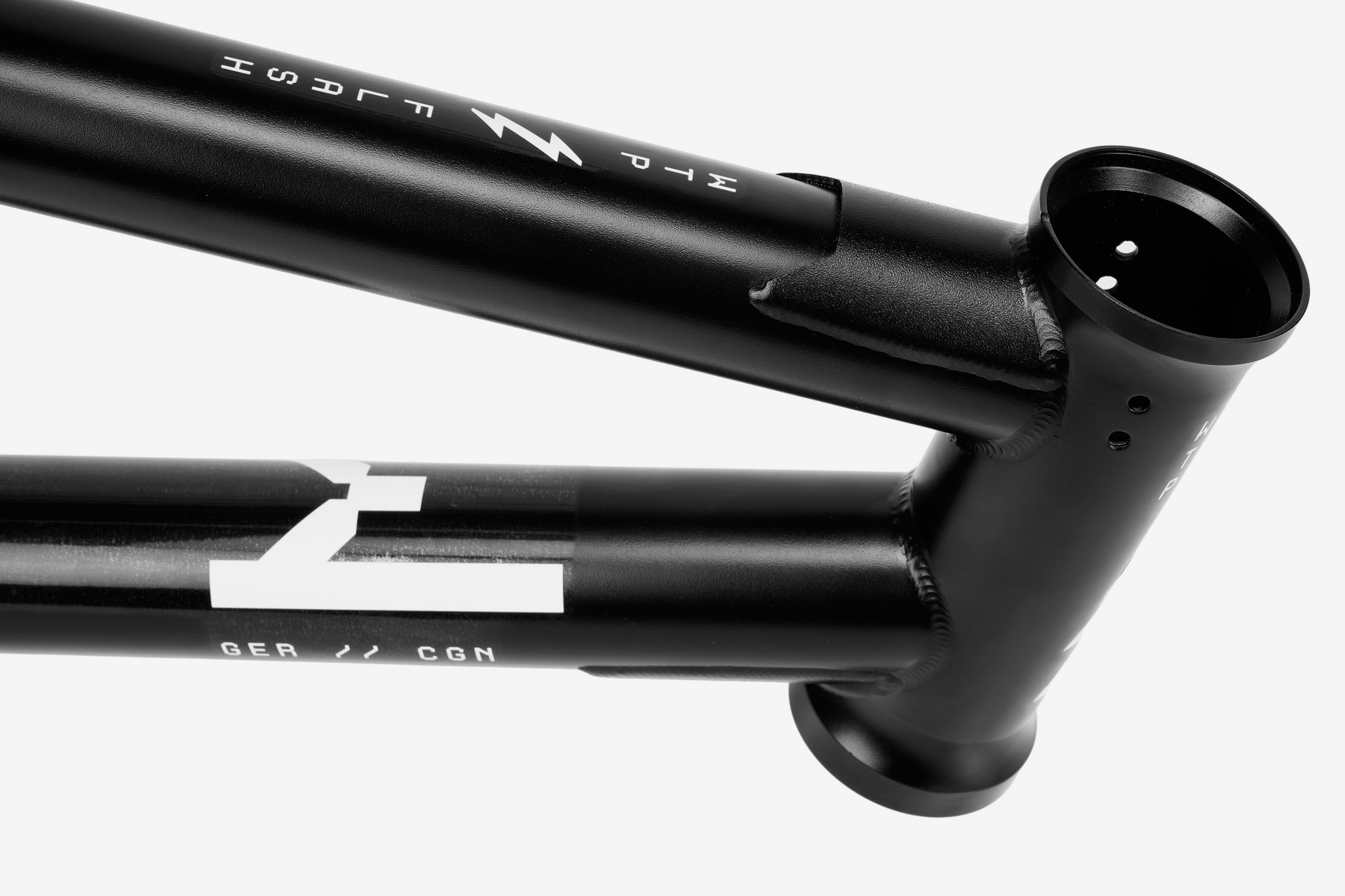

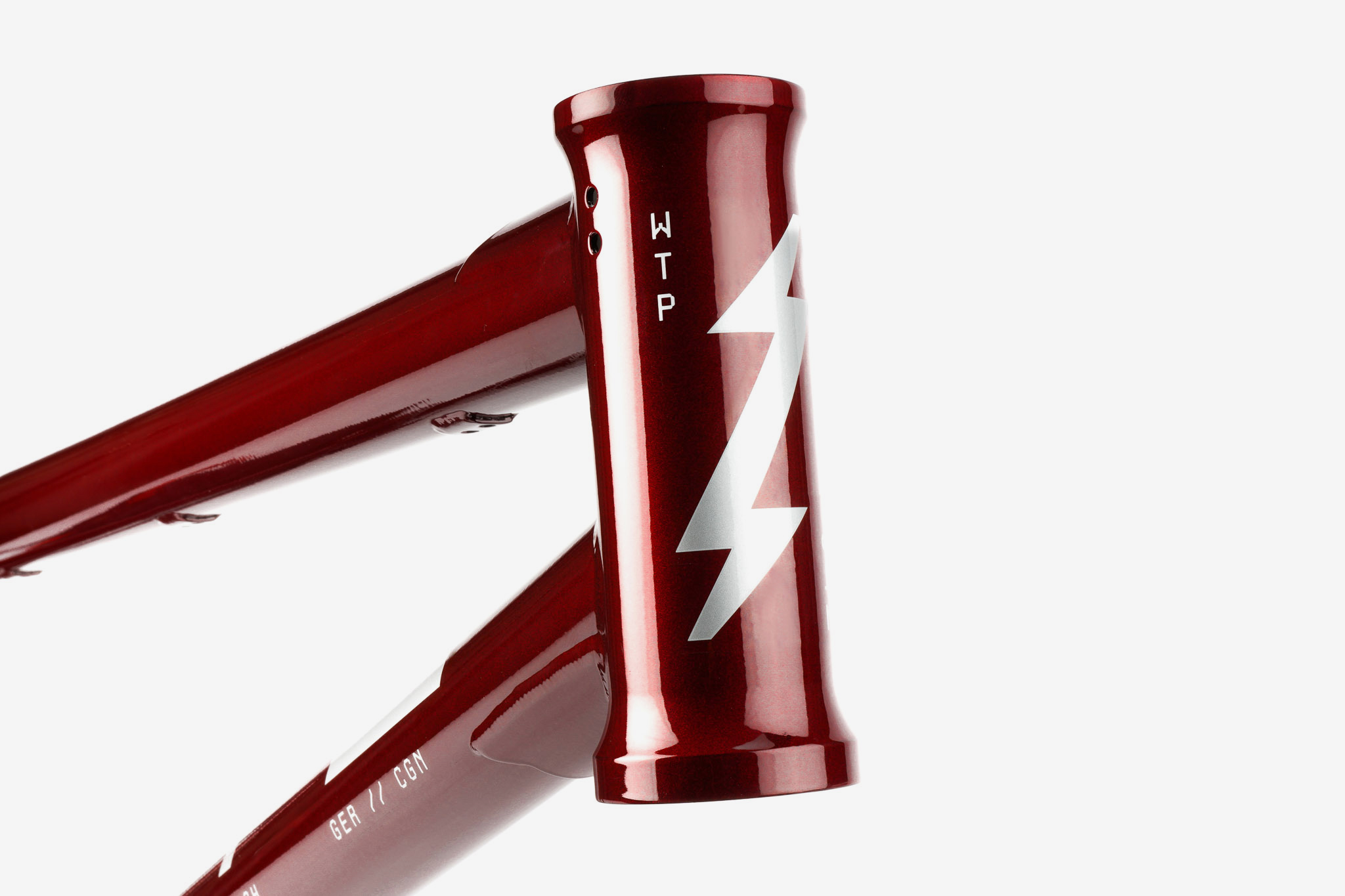

120mm cnc machined and heat-treated, integ. h/set
DROPOUTS:

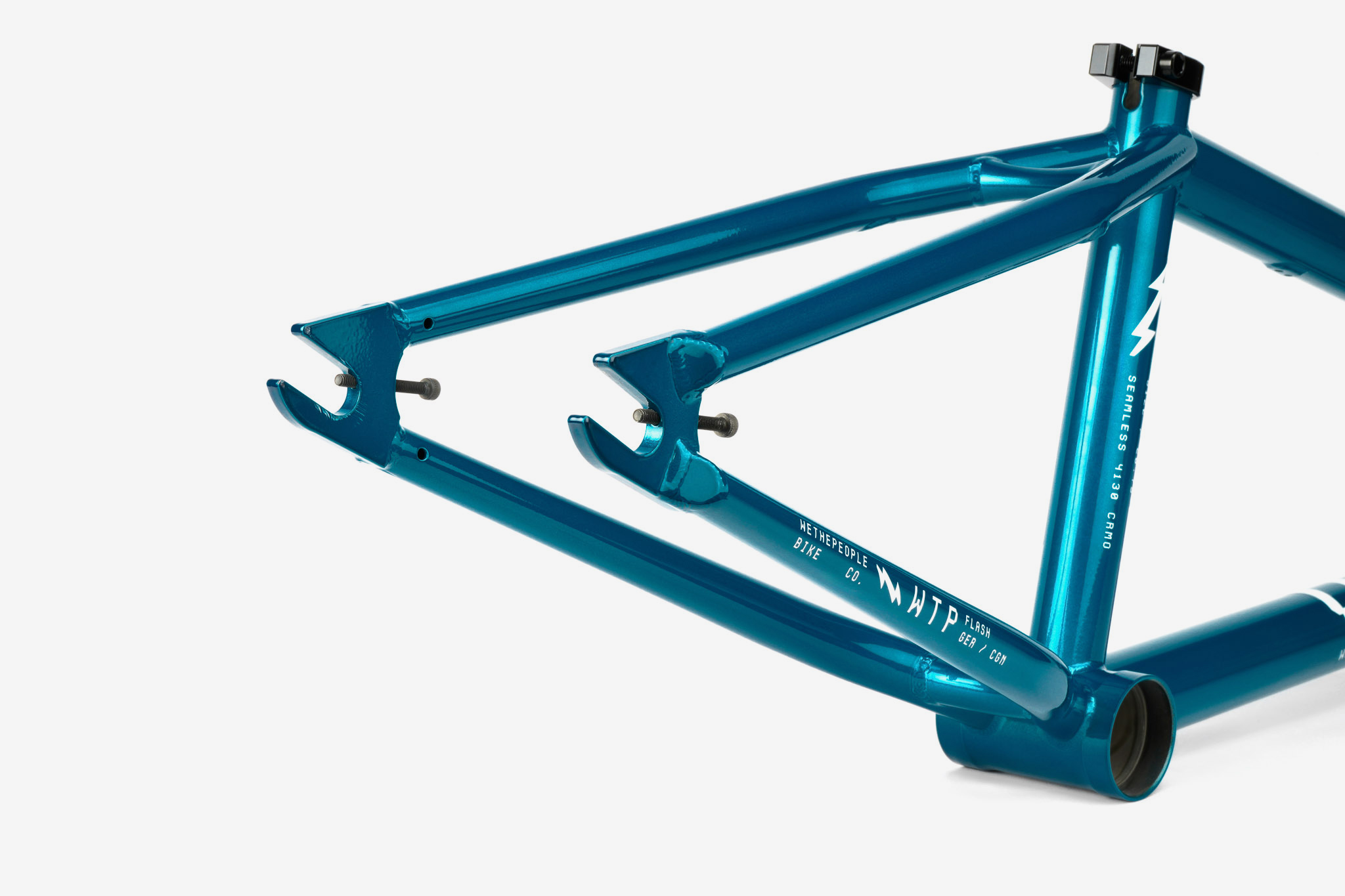

laser cut and cnc machined 6mm, heat-treated 4130 crmo, perfect shape for pegs and hub guards
BRAKES:
pivot-3 removable brake mounts, frame comes without repl. brake hardware
SPECIAL FEATURES:

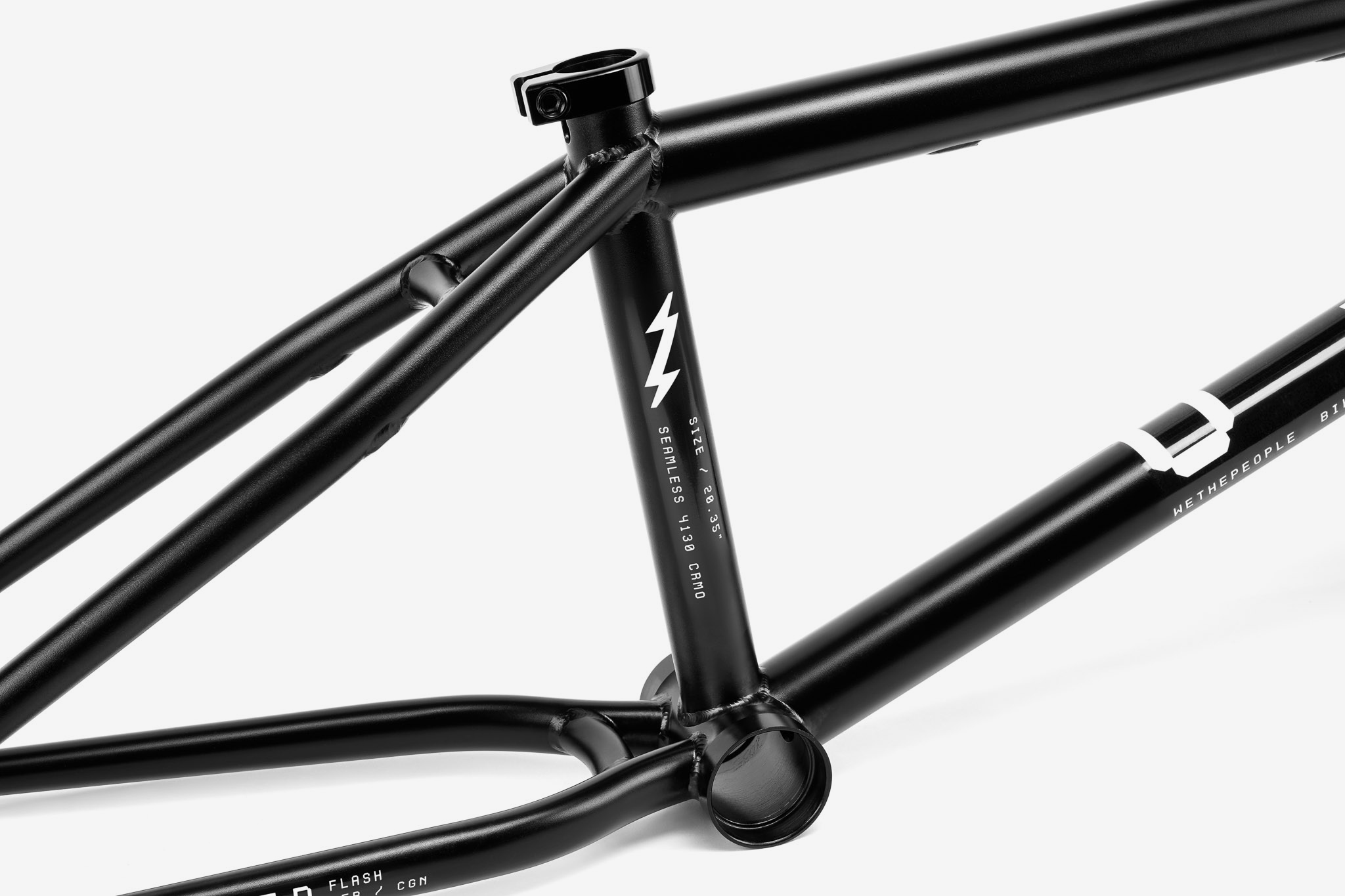

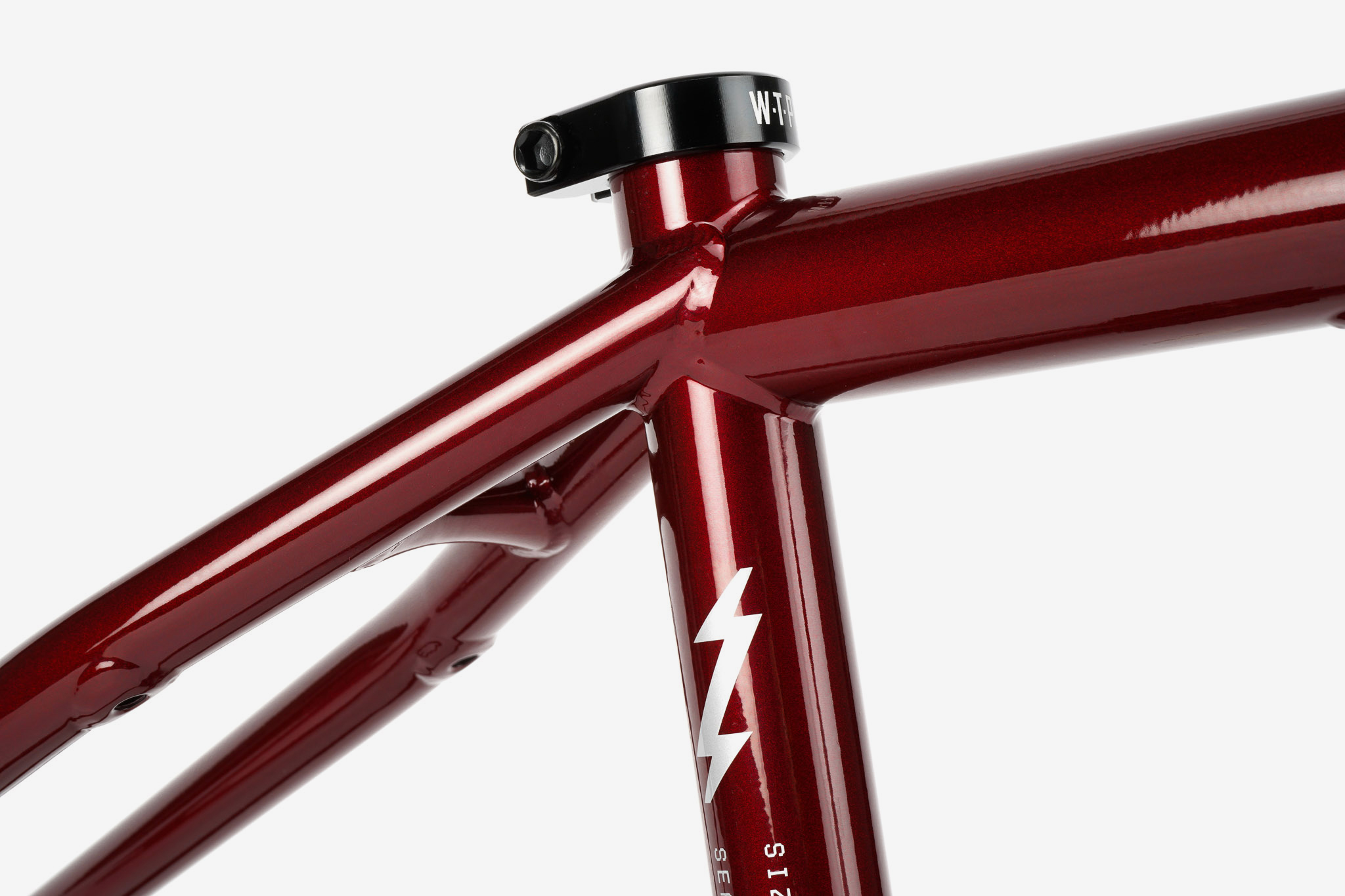

• park/transition inspired technical frame • super lightweight • curved seat stay bridge and chain stay bridge • wider rear triangle allows clearance for a 2.4" tire • incl. WTP supreme seat clamp • WTP top tube and down tube gusset • ovalized chain stays for increased tire & sprocket clearance • includes LIFETIME GUARANTEE
COLORS:

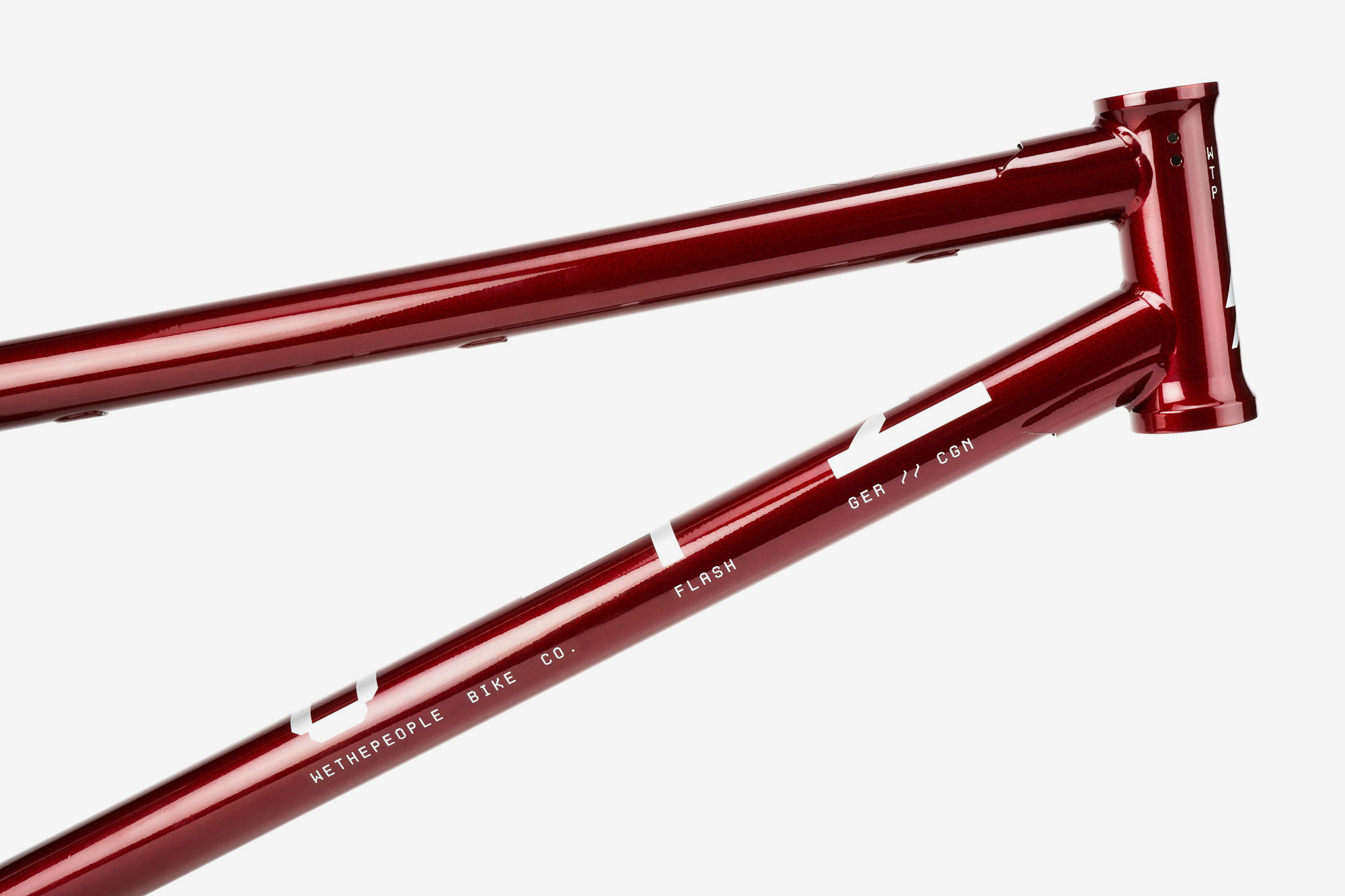

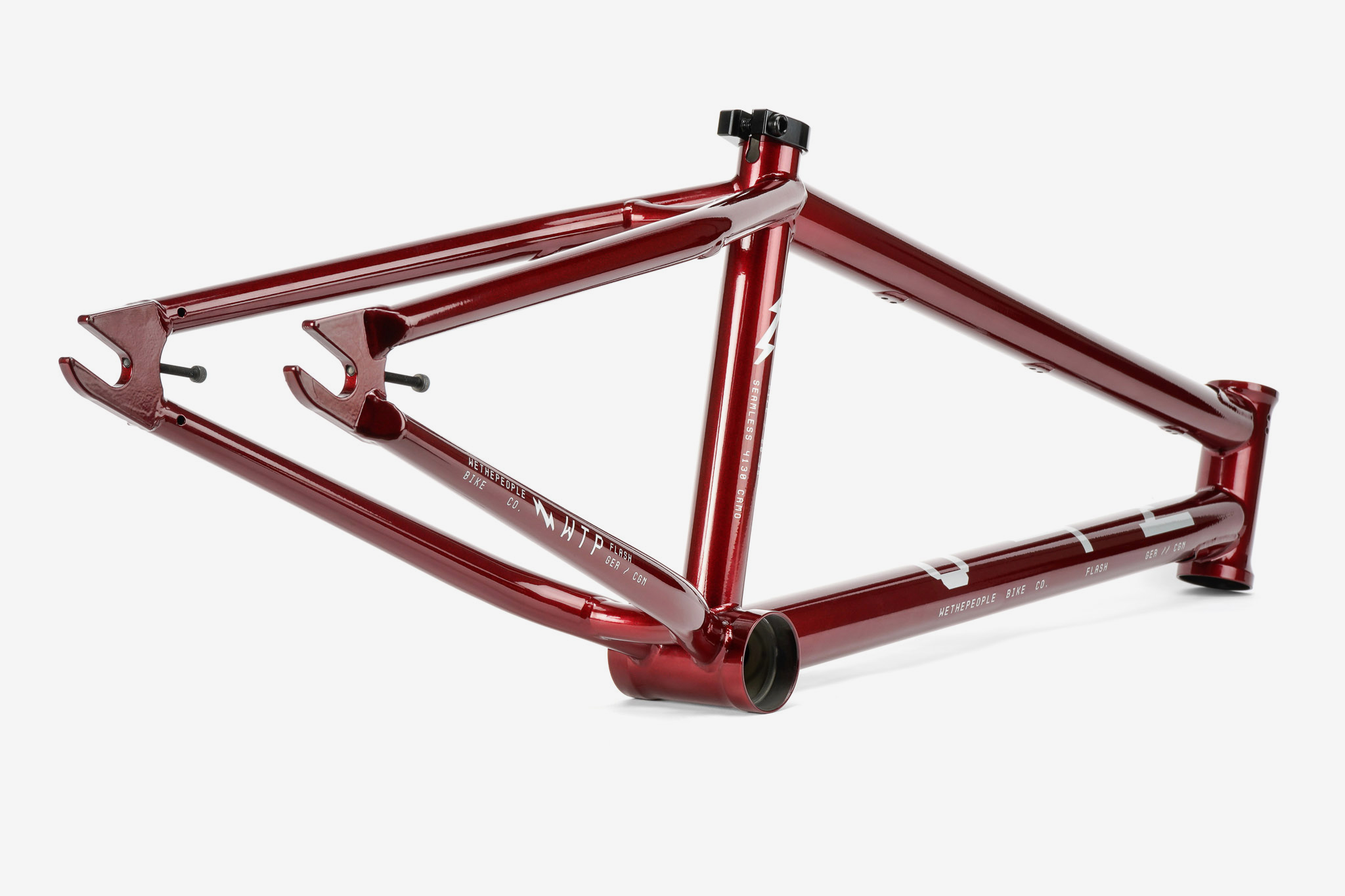

Crystal Red
/
Crystal Green
/

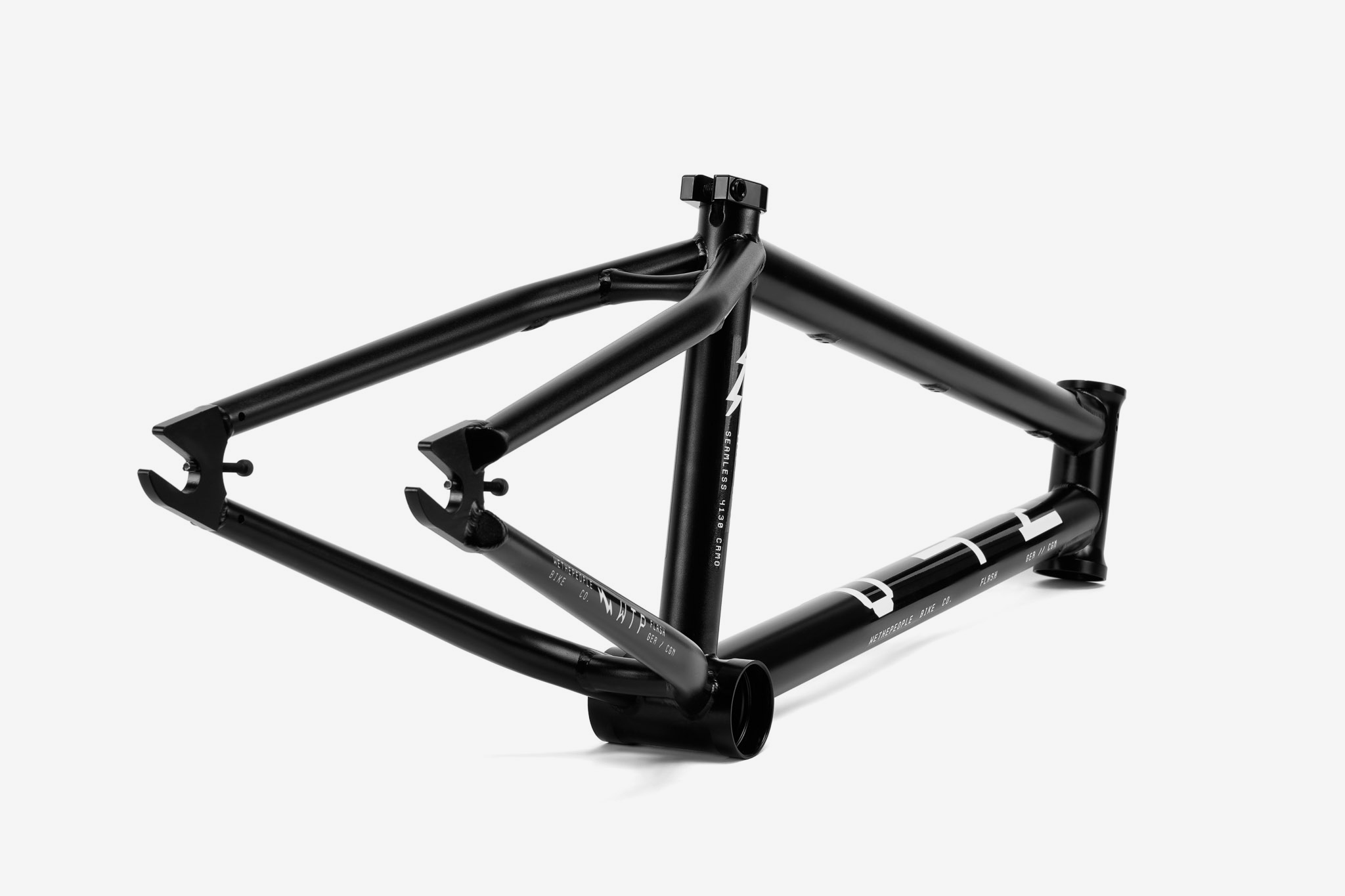

Black
WEIGHT:
2.05kg (4.52lbs) - 21" tt

GEOMETRY

plus
A - TOP TUBE LENGTH:
19.75", 20.35", 20.75" or 21"
B - CHAIN STAY LENGTH:
12.6" - 13" / optimized for 12.9" w/25-9
C - HEAD TUBE ANGLE:
75.5°
D - SEAT TUBE ANGLE:
71°
E - BB HEIGHT:
11.5"
F - STANDOVER HEIGHT:
8.25"
