STREET FRAME - 20.5" / 20.75" / 21"

BATTLESHIP

colors:

arrow-left

Combining cutting edge hydroforming technology with input from the Wethepeople team, the Battleship Frame is the perfect match for the progressive street rider. Boasting an incredibly short 12.7" chainstay, thicker cnc machined dropouts (designed to work flawlessly with hub-guards and pegs) ; the Battleship is a super tough, no-nonsense street weapon with our most responsive geometry yet. Includes lifetime guarantee.

BATTLESHIP

RESPONSIVE STREET FRAME

BATTLESHIP

BATTLESHIP

BATTLESHIP

BATTLESHIP

SPECIFICATIONS

plus
TUBING:
butted, Japanese seamless 4130 crmo tubing
BOTTOM BRACKET:
74mm mid size, cnc machined and heat-treated
HEAD TUBE:
127mm cnc machined and heat-treated, integ. h/set
DROPOUTS:
laser cut and cnc machined 6mm, heat-treated 4130 crmo, perfect shape for pegs and hub guards
BRAKES:
pivot-3 removable brake mounts, frame comes without repl. brake hardware
SPECIAL FEATURES:
• technical, team-designed street frame • extra thick double butted top tube • super short 12.75" (slammed) chain stays • wider rear triangle allows clearance for a 2.4" tire • hydroformed top and down tube for superior strength and stiffness • investment cast seat clamp • larger 1.8mm welding at head tube • ovalised chain stays for increased tire & sprocket clearance • includes LIFETIME GUARANTEE
COLORS:
Matt Carbon Raw
/
Matt Dusk Blue
/
Black
WEIGHT:
2.42kg/ 5.35 lbs- (21" tt)

GEOMETRY

plus
A - TOP TUBE LENGTH:
20.5", 20.75" or 21"
B - CHAIN STAY LENGTH:
12.7" – 13.25" - optimized for 12.75" / 13'' w/ 25-9
C - HEAD TUBE ANGLE:
75.75°
D - SEAT TUBE ANGLE:
71°
E - BB HEIGHT:
11.7"
F - STANDOVER HEIGHT:
9"
FEATURES
plus

HYDROFORMED TUBING

OUR HYDROFORMED TUBING MAXIMISES THE WELDING AREA ON THE HEADTUBE JUNCTION FOR INCREASED STIFFNESS AND DURABILITY
OUR HYDROFORMED TUBING MAXIMISES THE WELDING AREA ON THE HEADTUBE JUNCTION FOR INCREASED STIFFNESS AND DURABILITY

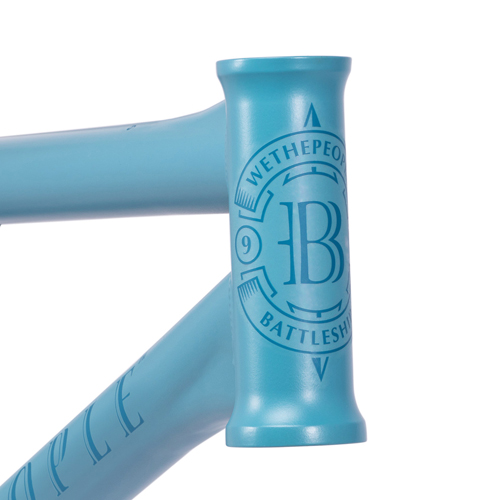

TALLER 127MM HEAD TUBE

A TALLER 127 MM HEADTUBE NOT ONLY REDUCES THE NEED FOR LOTS OF HEADSET SPACERS FOR A CLEANER LOOK, BUT ALSO ADDS EXTRA STRENGTH TO THE FRAME
A TALLER 127 MM HEADTUBE NOT ONLY REDUCES THE NEED FOR LOTS OF HEADSET SPACERS FOR A CLEANER LOOK, BUT ALSO ADDS EXTRA STRENGTH TO THE FRAME

SHORT 12.7" CHAINSTAY

MADE FOR PURE RESPONSIVENESS, THE BATTLESHIP'S SHORT 12.7" REAR END GIVES YOU THE POP YOU NEED
MADE FOR PURE RESPONSIVENESS, THE BATTLESHIP'S SHORT 12.7" REAR END GIVES YOU THE POP YOU NEED
