TRUST

  • Intro
  • Specs
  • Geometry

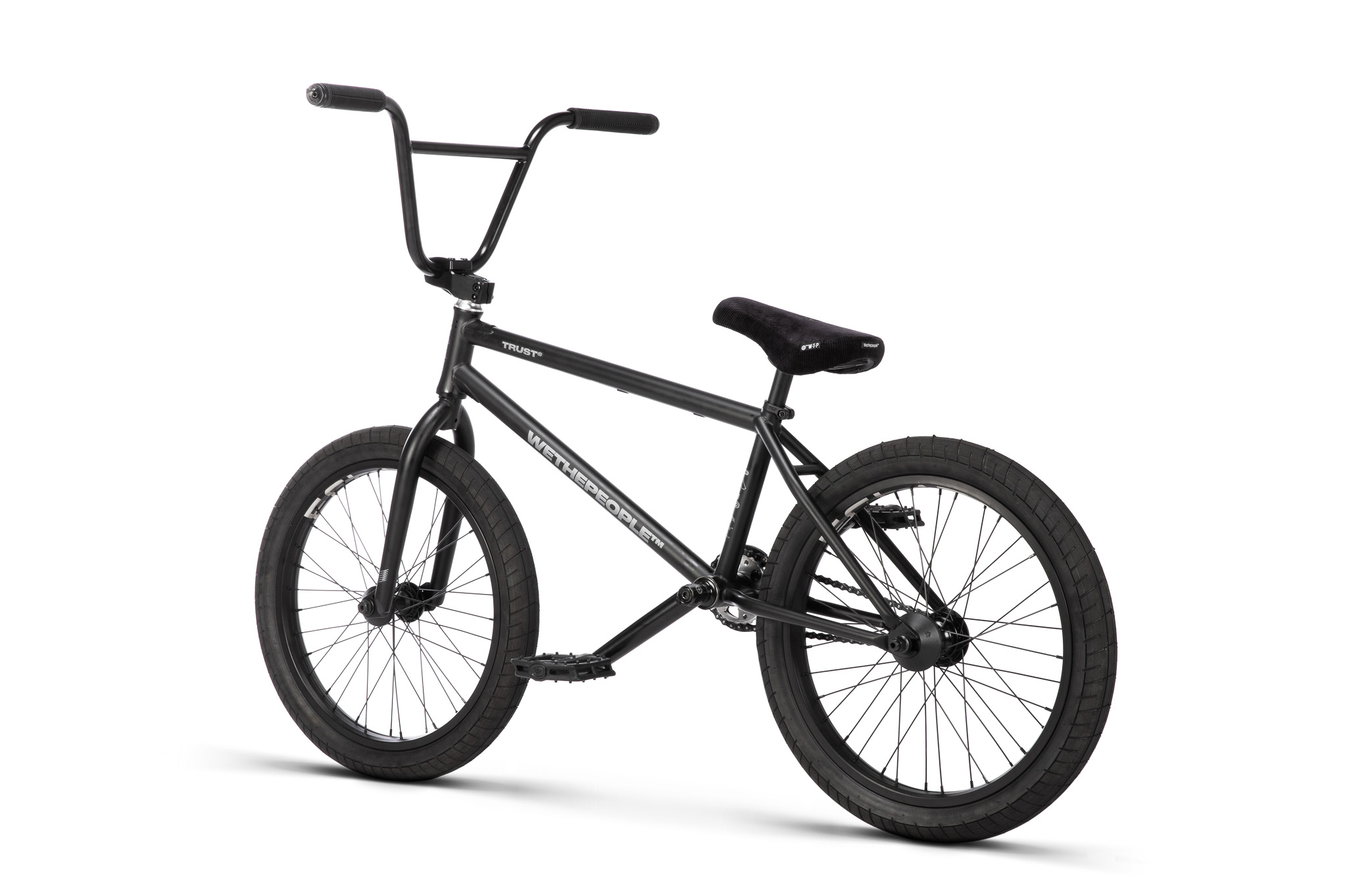

If there’s one thing we know well, it’s that a BMX should be able to live up to the progressive abilities of its owner. When riding hits that next level you are going to need a sturdy piece of kit under your feet. The Trust is fast becoming a complete bike with legendary status, and this year we’ve taken things up a notch again. The full 4130 crmo frame incorporates tapered butted tubing integrated chain tensioner and this year we decorated them both in deep blue and black. The full 4130 crmo bars come draped with the new ‘Raptor’ grips, a ‘Geo’ SALTPLUS hinged alloy brake lever and the SALTPLUS ‘Delta’ CNC alloy front loader holds it tight.

We don’t believe in stocking up our completes with tasteless products, instead we lined the Trust with a pair of ÉCLAT ‘Trippin’ rims, a thick ‘Trust’ pivotal seat and a ‘Supreme’ full CNC 6061 T6 alloy seat clamp to further enrich our idea of a perfect complete bike. When your level of riding starts to get pretty serious, take a roll on the Trust.

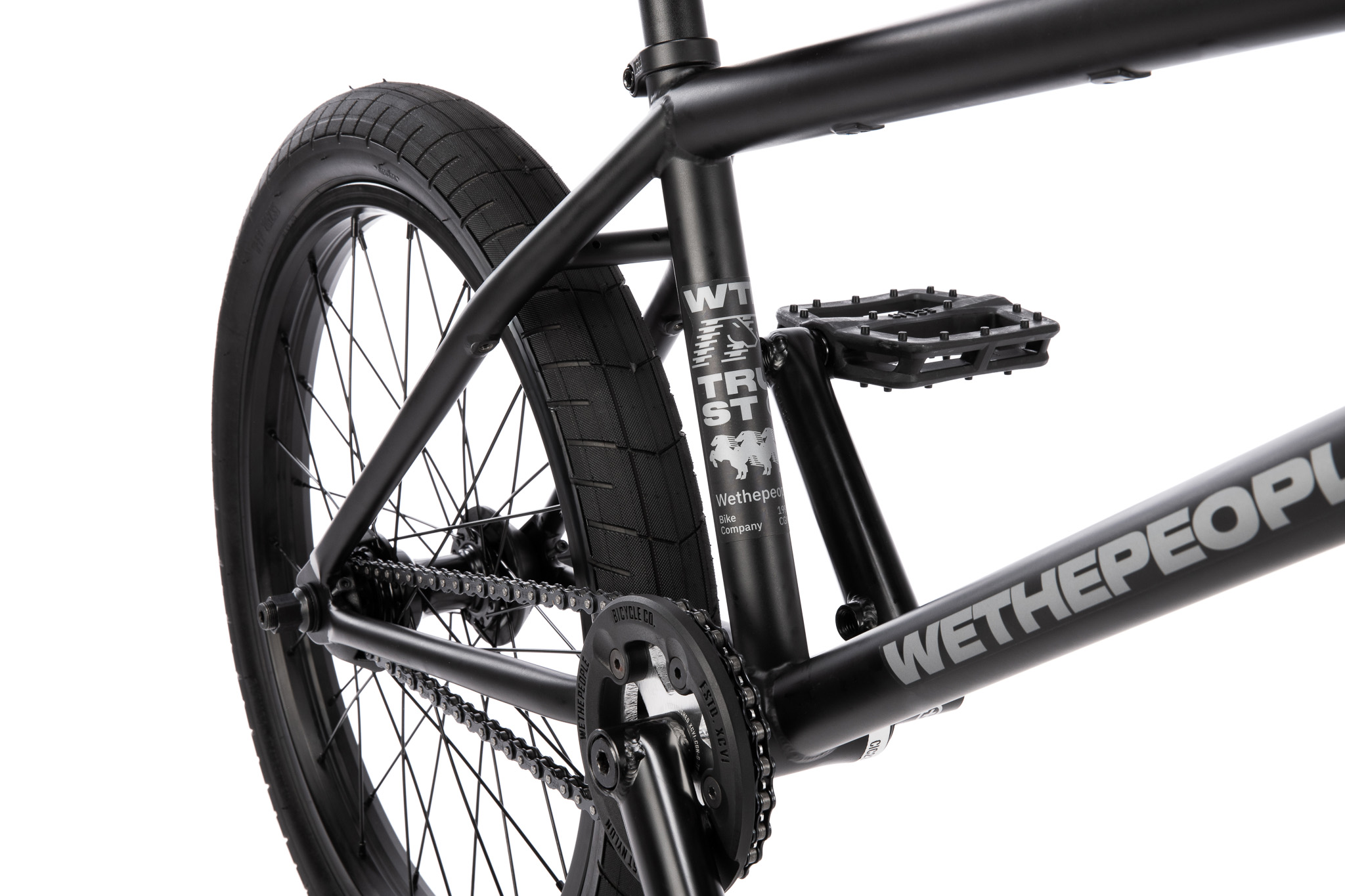

FRAME 4130 full crmo, tapered butted tubing, int. chain tensioner

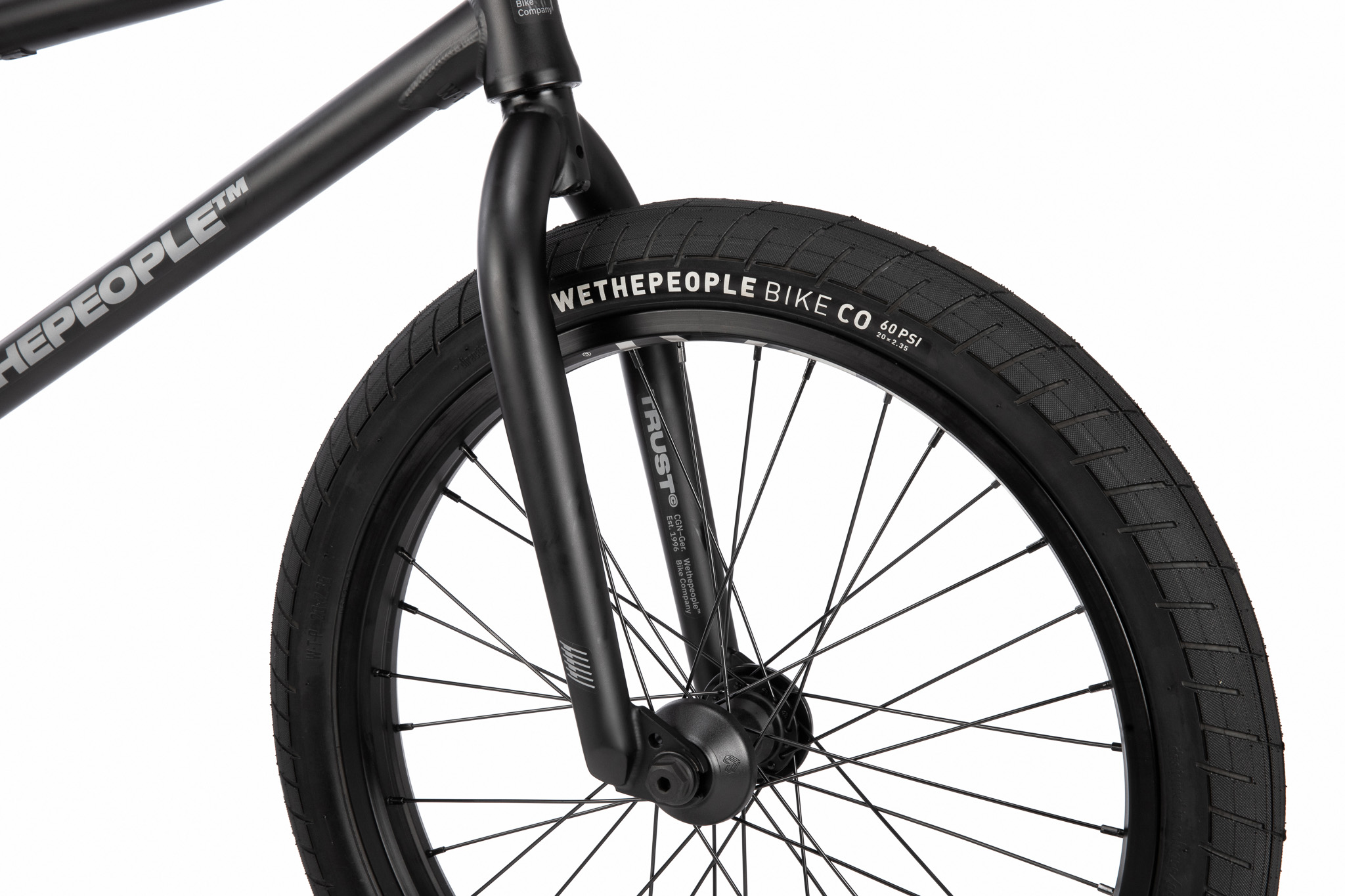

FORK SALTPLUS “HQ” fork, full 4130 crmo, 1pc crmo steerer

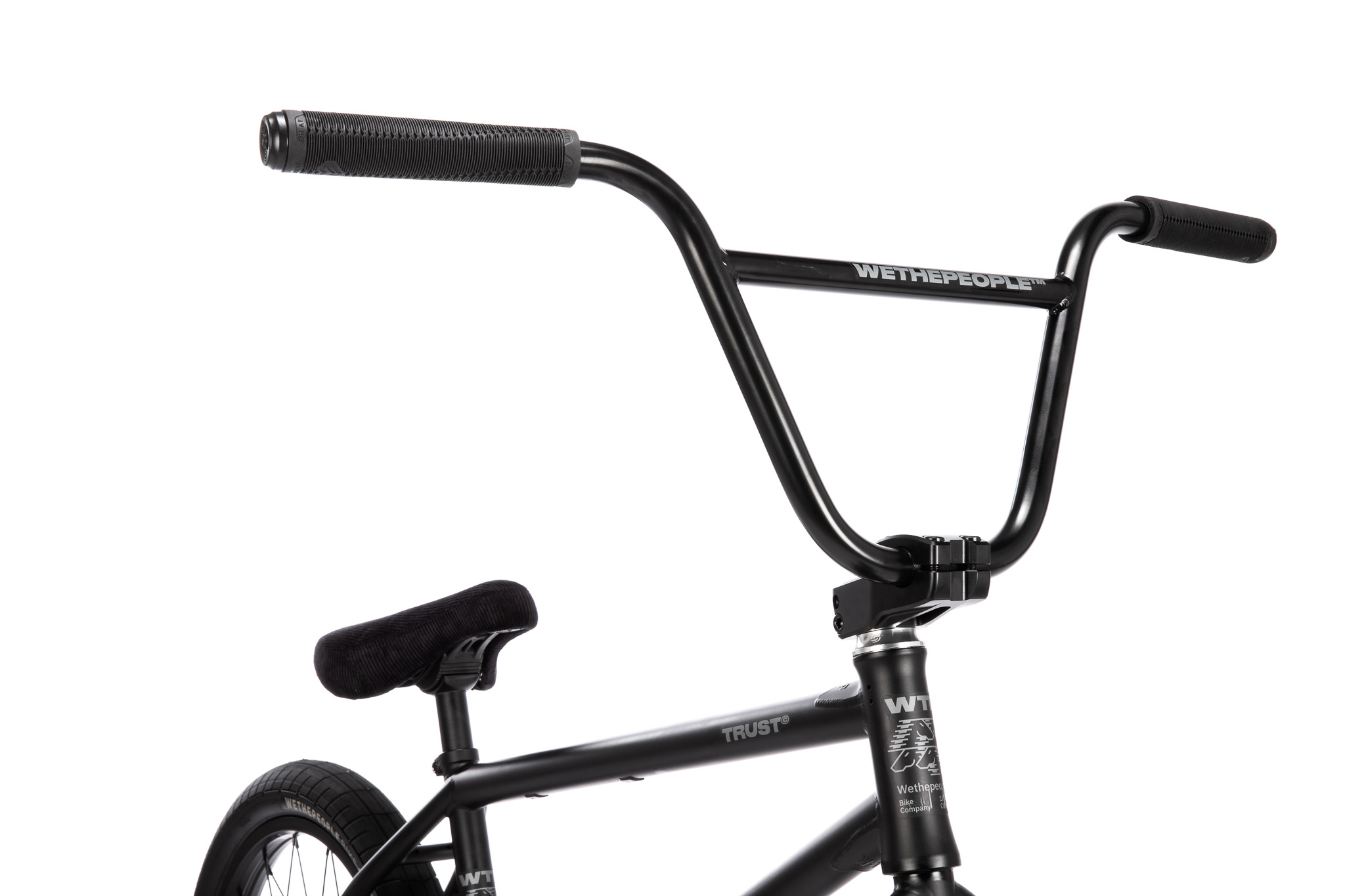

BARS full 4130 crmo bar
GRIPS WETHEPEOPLE “Raptor” grip

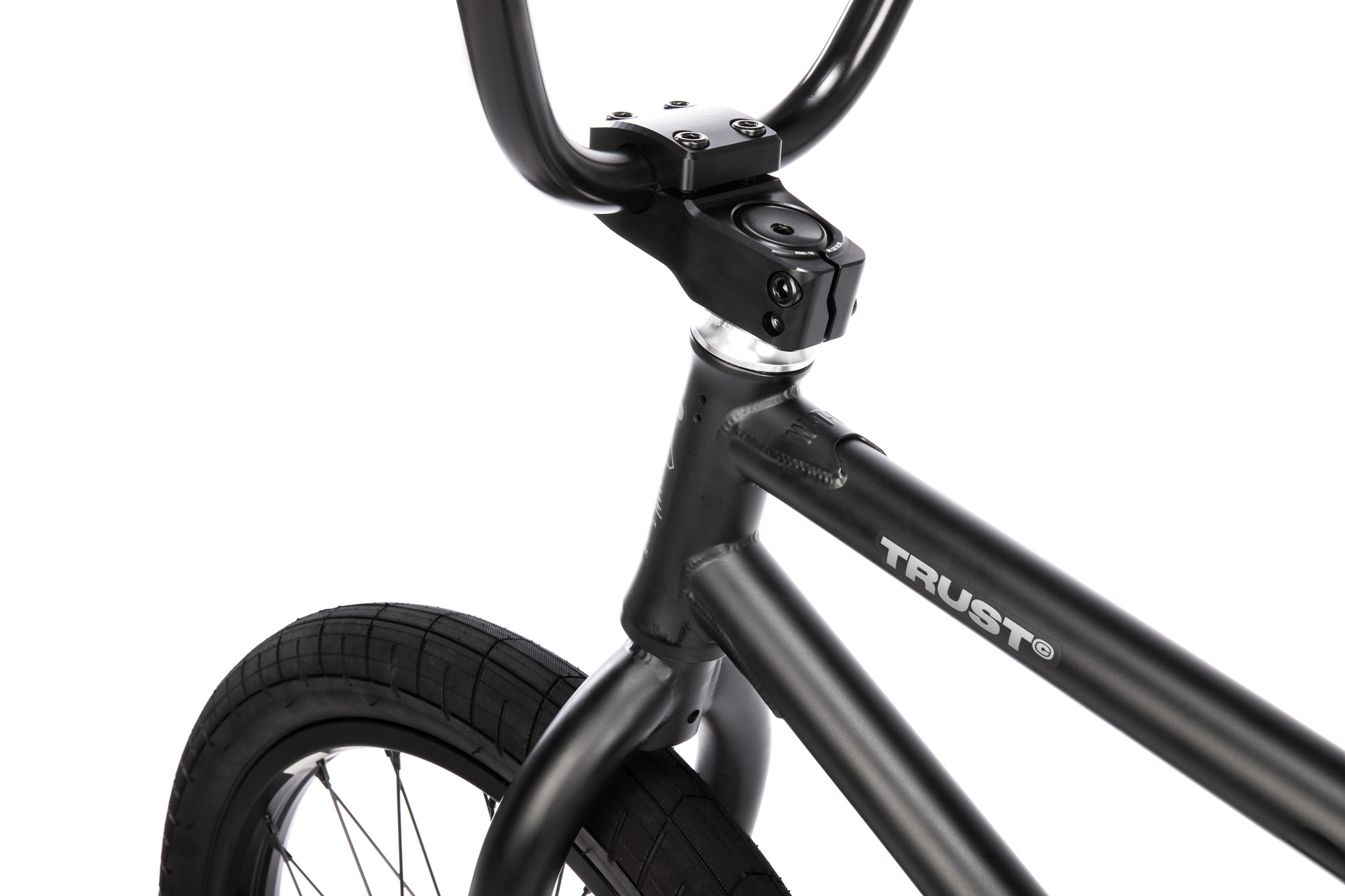

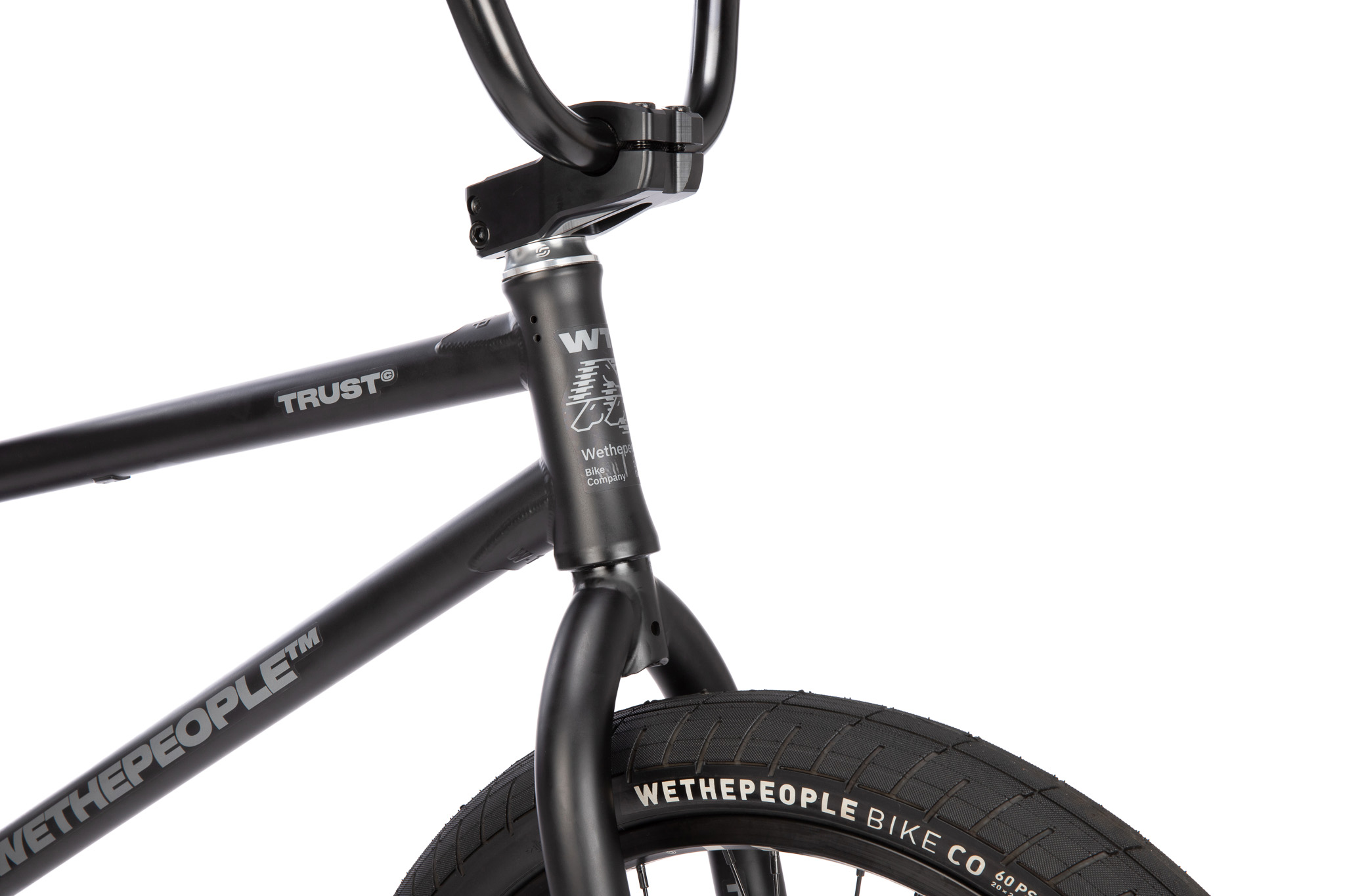

STEM SALTPLUS “Delta” cnc alloy front loading stem, 50mm reach
HEADSET SALTPLUS “Echo” int. headset, sealed bearing
GYRO no / full removable brake hardware
LEVER SALTPLUS “Geo” hinged alloy brake lever
BRAKES SALTPLUS “Geo” alloy u-brake rear with "propeller" pads

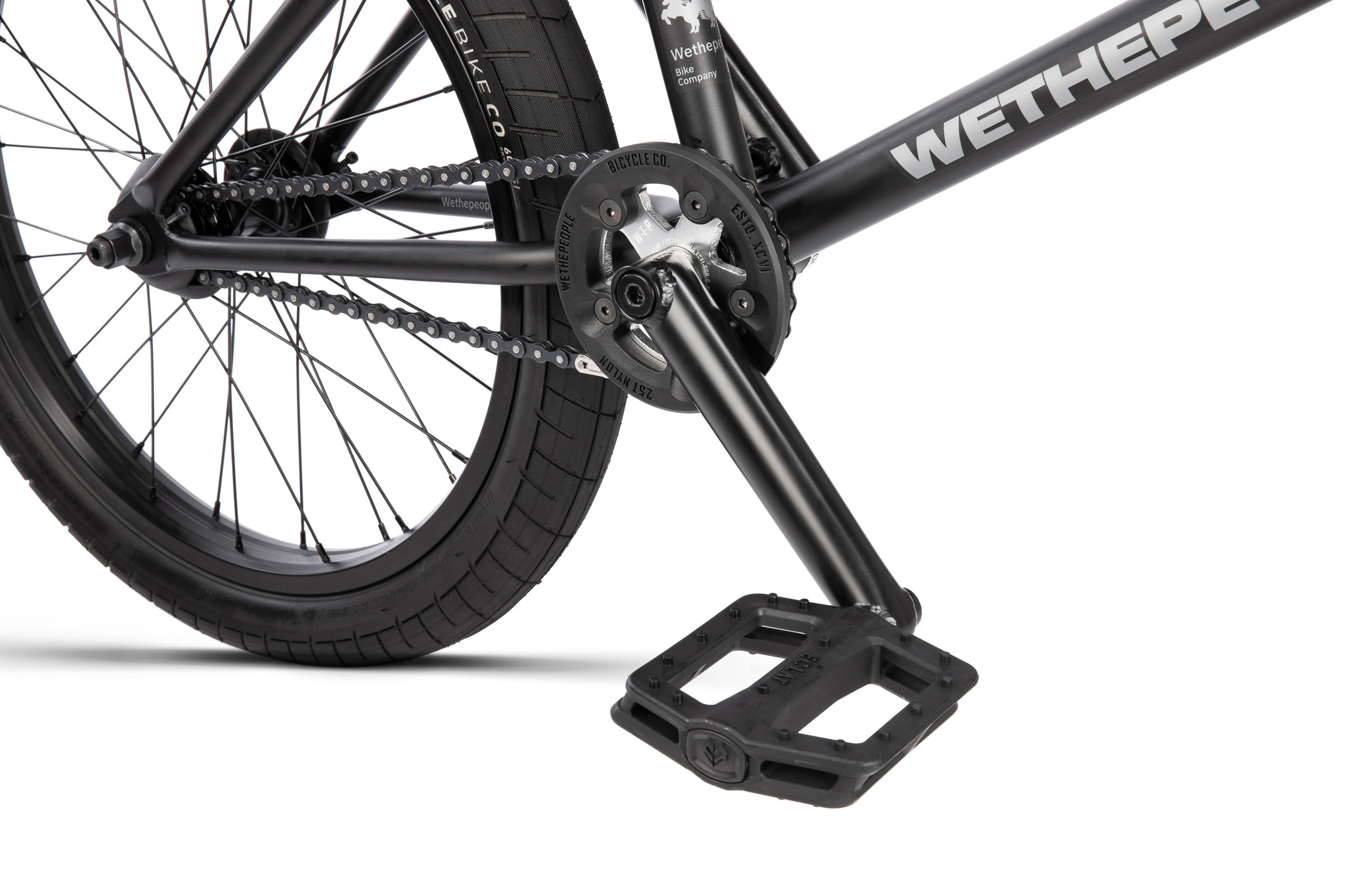

CRANKS SALT “Pro 48” (L&R) tubular 3pc crank crmo, 175mm, 48 spline
BB SALT “Mid Size” , press fit, sealed bearing

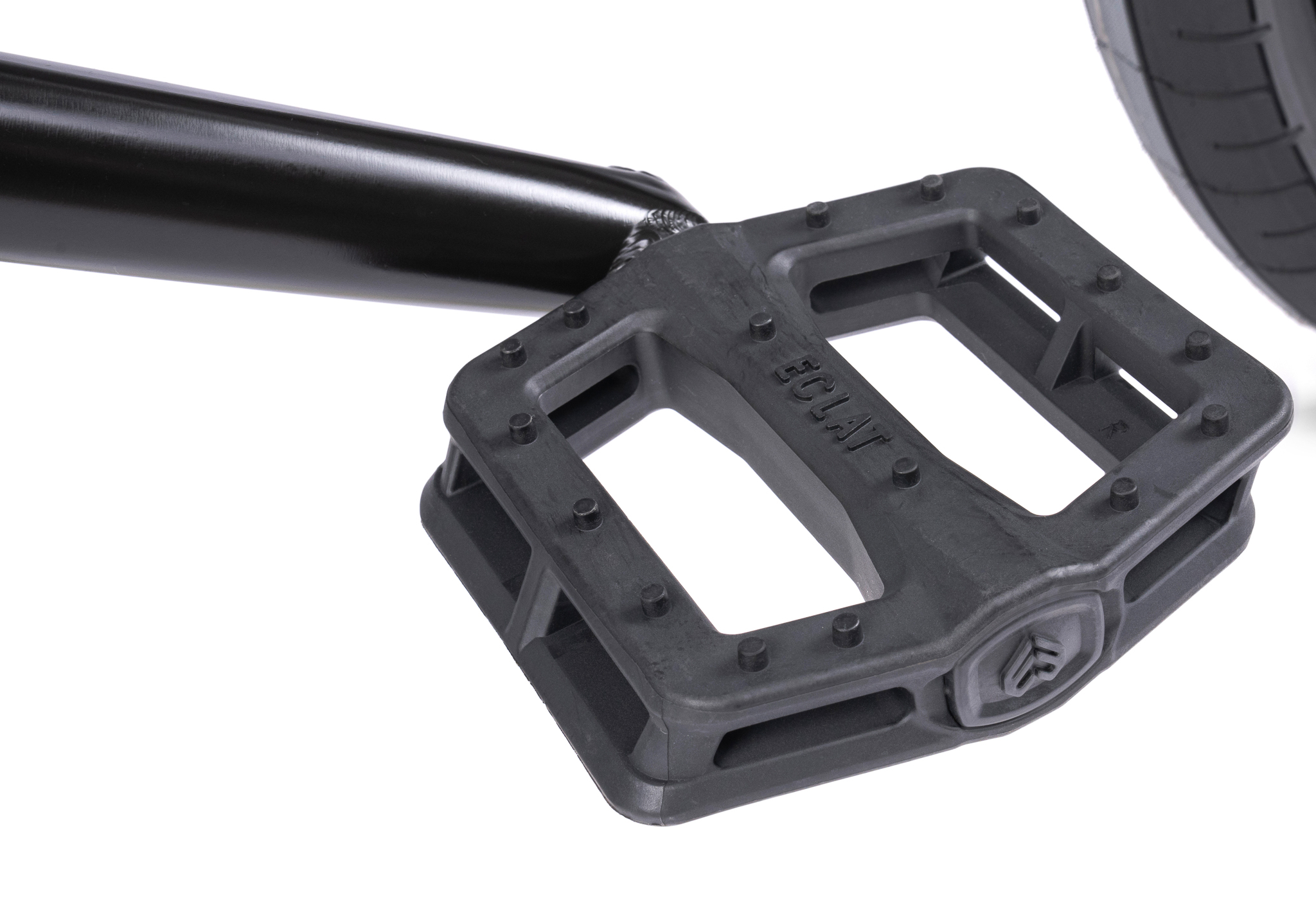

PEDALS ÉCLAT “Slash” nylon/fibreglass pedals
CHAIN SALT “AM”chain, 510H type
SPROCKET SALTPLUS “Echo” 6061 T6 alloy, cnc, 25t sprocket
DRIVER 9t 1pc cassette driver, sealed bearing

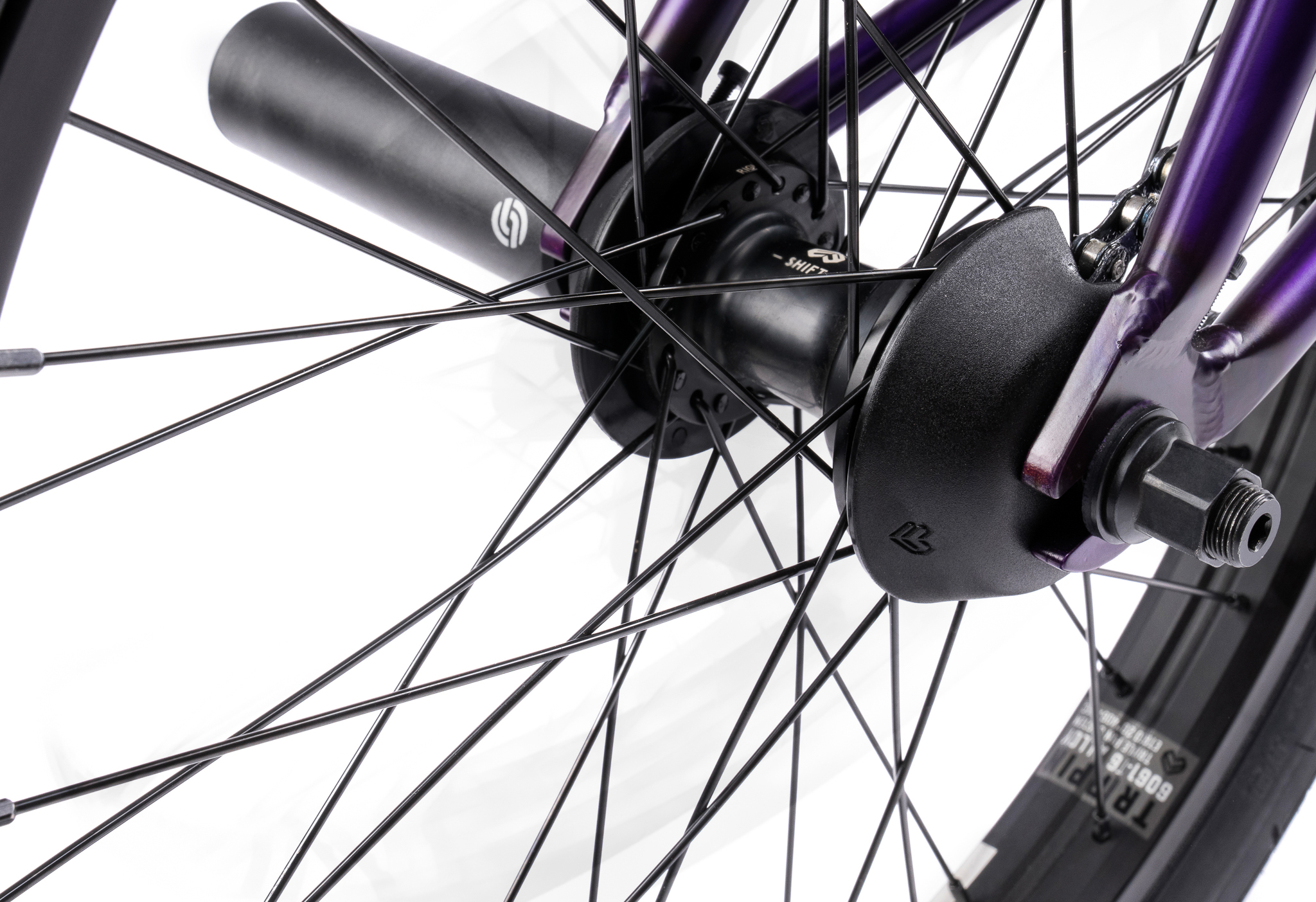

FRONT HUB SALT “Expert” hub, sb, 3/8”s female boltd, 36h

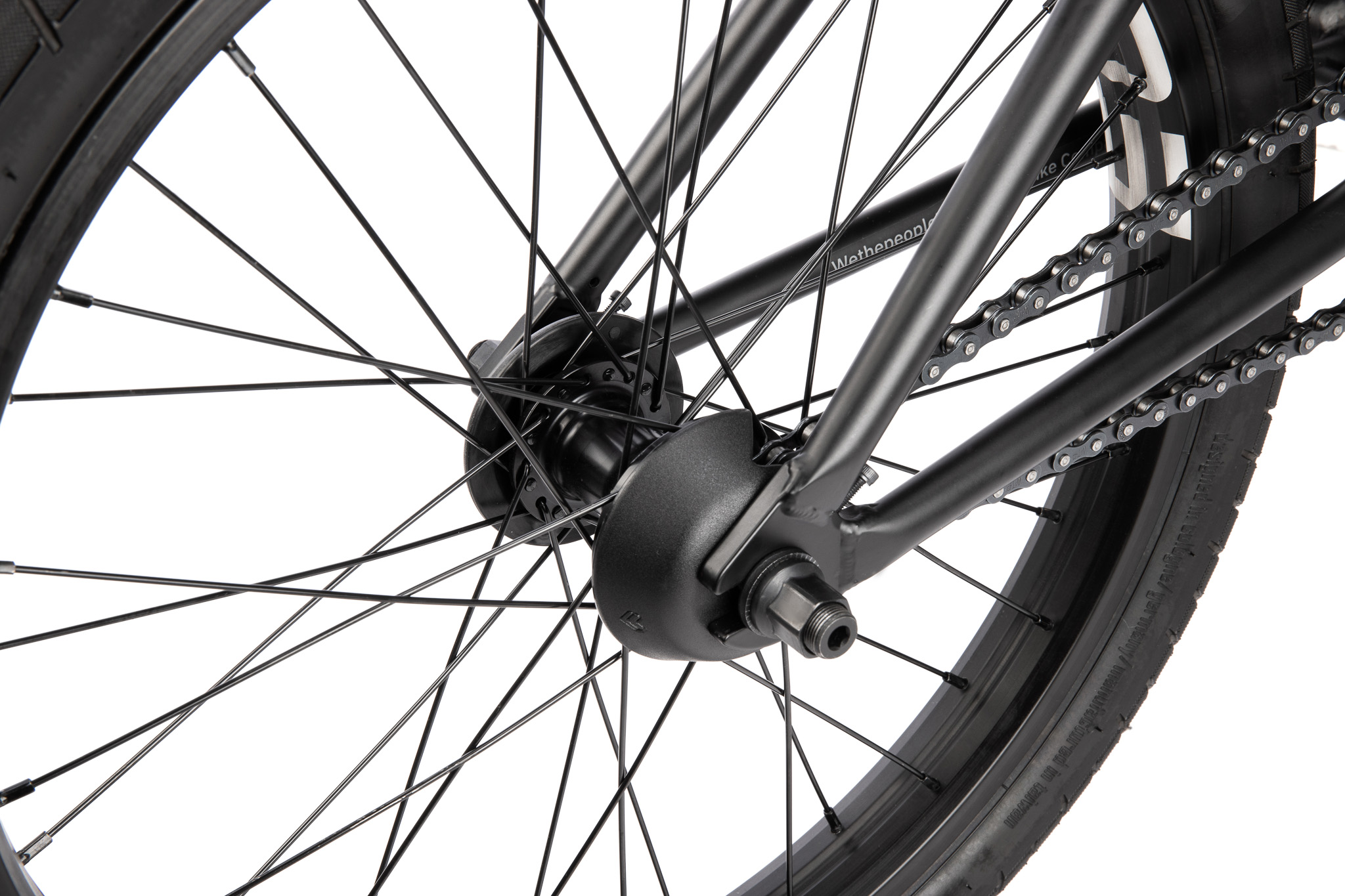

REAR HUB SALT “Pro”cassette hub, sb, 9t, hollow 14mm axle, 36h
FRONT RIM ÉCLAT “Trippin” aero double wall rim, 36h
REAR RIM ÉCLAT “Trippin” straight double wall rim, 36h

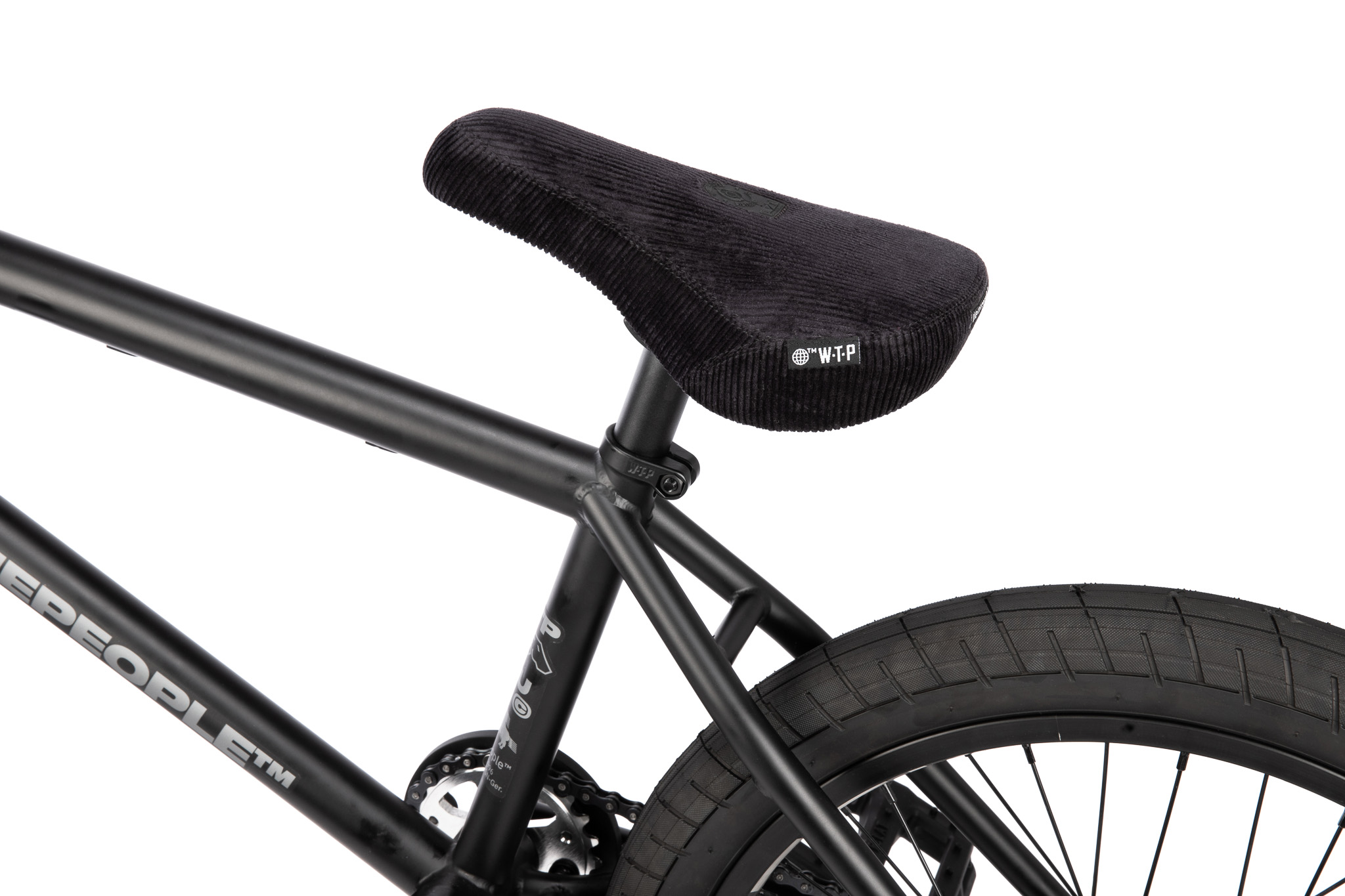

SEAT WETHEPEOPLE “Trust” thick padded pivotal seat
SEAT POST SALT “AM” pivotal seat post, alloy, 150mm
SEAT CLAMP WETHEPEOPLE “Supreme” full cnc 6061 T6 alloy seat clamp
TIRES SALT tires “Pitch Mid” 2.3" front / “Pitch Flow” 2.2" rear
PEGS SALT “AM” steel pegs (1 pair)
WEIGHT 11.4kg (25.13lbs) w/o pegs & brakes



Frame
TOP TUBE LENGTH 20.5" or 21"
CHAIN STAY LENGTH 13.2"
HEAD TUBE ANGLE 75°
SEAT TUBE ANGLE 70°
BOTTOM BRACKET HEIGHT 11.6"
STAND OVER HEIGHT 8.5"
Bar
BAR RISE 8.65"
BAR WIDTH 28.5"
BAR BACKSWEEP 11.5°
BAR UPSWEEP 1.5°
